Understanding Pipe Schedules in Global Standards
Pipe schedules are essential in defining the wall thickness and overall durability of steel pipes. The schedule system was introduced to bring consistency to pipe dimensions across different regions and industries. Two of the most widely used standards in the industry are ASME B36.10M, which mainly applies to carbon steel pipes, and ASME B36.19M, which is specific to stainless steel pipes. SCH 40 falls under ASME B36.10M, while SCH 40S falls under ASME B36.19M. Although both share the same nominal designation, they are designed with slightly different wall thickness values to account for the properties of carbon steel and stainless steel. Understanding these standards is vital for ensuring the correct pipe is used in each project.
Dimensional Comparison Between SCH 40 and SCH 40S
When comparing SCH 40 and SCH 40S, one of the most noticeable aspects is wall thickness. Carbon steel under SCH 40 tends to follow dimensions optimized for pressure resistance with thicker walls, while stainless steel under SCH 40S has slightly reduced wall thickness for the same nominal size. This dimensional difference is subtle but has an impact on both the flow capacity inside the pipe and the overall weight of the system.
| Nominal Pipe Size (NPS) | SCH 40 Wall Thickness (Carbon Steel, B36.10M) | SCH 40S Wall Thickness (Stainless Steel, B36.19M) |
|---|---|---|
| 2" | 0.154 in (3.91 mm) | 0.154 in (3.91 mm) |
| 6" | 0.280 in (7.11 mm) | 0.280 in (7.11 mm) |
| 10" | 0.365 in (9.27 mm) | 0.307 in (7.80 mm) |
| 12" | 0.375 in (9.53 mm) | 0.330 in (8.38 mm) |
This table highlights that, in larger diameters, SCH 40 carbon steel pipes tend to have thicker walls compared to SCH 40S stainless steel pipes. The reason is that stainless steel inherently provides better corrosion resistance, so its design allows for slightly reduced thickness while maintaining performance.
Industrial Applications and Use Cases

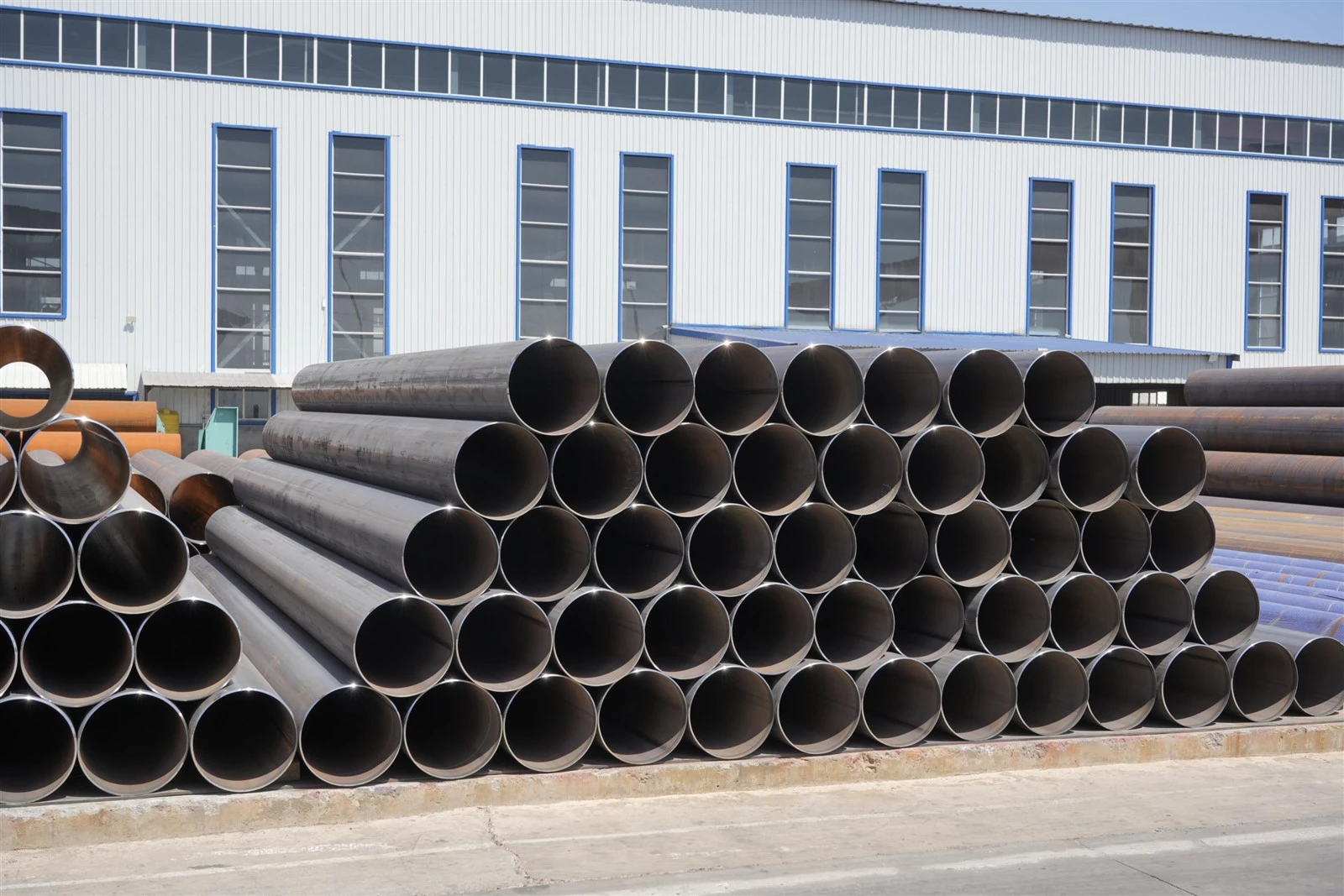

SCH 40 carbon steel pipes are widely used in water distribution, natural gas supply, oil pipelines, and construction frameworks. They are cost-effective and strong enough to withstand high internal pressures. For instance, in municipal water projects, SCH 40 carbon steel provides a reliable balance between performance and affordability.
On the other hand, SCH 40S stainless steel pipes are commonly seen in industries where hygiene and corrosion resistance are critical, such as food processing plants, chemical factories, and pharmaceutical facilities. For example, in marine engineering, SCH 40S stainless steel pipes are preferred because of their durability against saltwater corrosion, ensuring longer operational life.
How to Choose Between SCH 40 and SCH 40S
Choosing between SCH 40 and SCH 40S depends largely on the intended application. For projects requiring cost efficiency and mechanical strength in non-corrosive environments, SCH 40 carbon steel pipes are typically more suitable. However, for projects where corrosion, chemical exposure, or strict sanitary conditions are critical factors, SCH 40S stainless steel pipes are the better choice. Cost, maintenance requirements, and service environment should all be taken into consideration.
