Product Overview

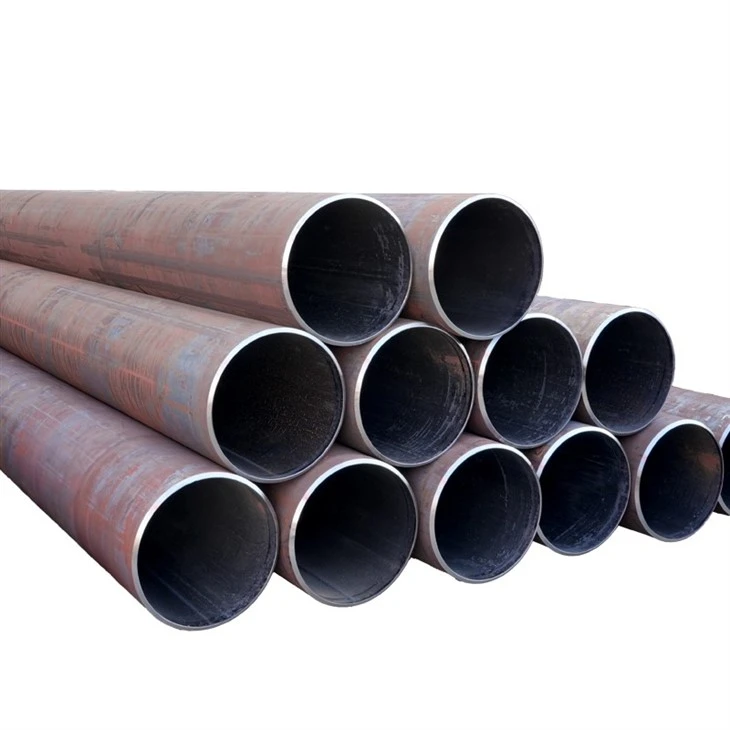

Huayang EN 10219-1 S235JRH LSAW steel pipe is manufactured for building structures requiring reliable strength, dimensional consistency and stable welded performance.
| Parameter | Specification |
|---|---|
| Material Grade | S235JRH |
| Material Number | 1.0039 |
| Standard | EN 10219-1 |
| Manufacturing Process | LSAW |
| Welding Method | Double Submerged Arc Welding |
| Product Type | Cold-Formed Welded Structural Hollow Section |
| Main Application | Building Structures |
EN 10219-1 covers cold-formed welded structural hollow sections made from non-alloy and fine-grain steels, while EN 10219-2 specifies dimensions and tolerances for these structural sections.
S235JRH Material Performance
S235JRH is a non-alloy structural steel grade with a minimum yield strength of 235 MPa for wall thickness up to 16 mm and 225 MPa for thickness above 16 mm up to 40 mm. Its tensile strength is 360–510 MPa, with a minimum elongation of 24%. The grade also specifies a minimum impact energy of 27 J at 20°C. With balanced strength, ductility and weldability, S235JRH is suitable for structural members and fabricated building components. Huayang can provide weld nondestructive testing, dimensional inspection and other quality controls according to project requirements.
Our Certificate
Bundling and loading onto vehicles
Pipe Detaild Packages
| Specification | Pcs per Bundle | Bundling Layer Pattern | CBM per Bundle | |
| OD (mm) | Wall Thickness (mm) | |||
| 48.3 | 3.68 | 91 | 6,7,8,9,10,11,10,9,8,7,6 | 1.69 |
| 5.08 | 61 | 5,6,7,8,9,8,7,6,5 | 1.13 | |
| 60.3 | 3.91 | 61 | 5,6,7,8,9,8,7,6,5 | 1.77 |
| 5.54 | 37 | 4,5,6,7,6,5,4 | 1.07 | |
| 73 | 5.16 | 37 | 4,5,6,7,6,5,4 | 1.57 |
| 7.01 | 24 | 4,5,6,5,4 | 0.96 | |
| 88.9 | 5.49 | 24 | 4,5,6,5,4 | 1.42 |
| 7.62 | 19 | 3,4,5,4,3 | 1.19 | |
| 114.3 | 6.02 | 19 | 3,4,5,4,3 | 1.96 |
| 8.56 | 10 | 3,4,3 | 0.94 | |
| 141.3 | 6.55 | 10 | 3,4,3 | 1.44 |
| 9.53 | 7 | 2,3,2 | 1.08 | |
| 168.3 | 7.11 | 10 | 3,4,3 | 2.04 |
| 10.97 | 7 | 2,3,2 | 1.53 | |
| 219.1 | 8.18 | 7 | 2,3,2 | 2.59 |
| 12.7 | 5 | 2,3 | 1.73 | |
| 273 | 9.27 | 5 | 2,3 | 2.68 |
| 15.09 | 3 | 1,2 | 1.79 | |
| 323.8 | 10.31 | 3 | 1,2 | 2.52 |
| 17.48 | 2 | 1,1 | 1.26 | |
Pipe Protection
Pipe-end protection is advisable in case the pipe-ends are bevelled at the pipe manufacturer. In the case of overseas transport, there is an especially increased risk of damaged pipe-ends. This is caused by extra handling procedures in ports and shifting of the pipes onboard vessels.
In addition to end caps or protective rings, external wrapping with protective cloth can be applied along the pipe body. This wrapping helps to safeguard the coating surface from scratches, moisture, and contamination during long-distance transportation or prolonged outdoor storage. Especially for coated or painted pipes, the additional protective cloth layer significantly reduces the risk of mechanical damage, UV exposure, and corrosion initiation, ensuring the pipes arrive at the destination in optimal condition.
