Hebei Huayang Steel Pipe Co., Ltd is one of the leading manufacturers and suppliers of en 10210-1 s420nh lsaw steel pipe for high-strength structural members in China. Please feel free to buy cheap en 10210-1 s420nh lsaw steel pipe for high-strength structural members from our factory. All customized products are with high quality and low price.
Product Overview

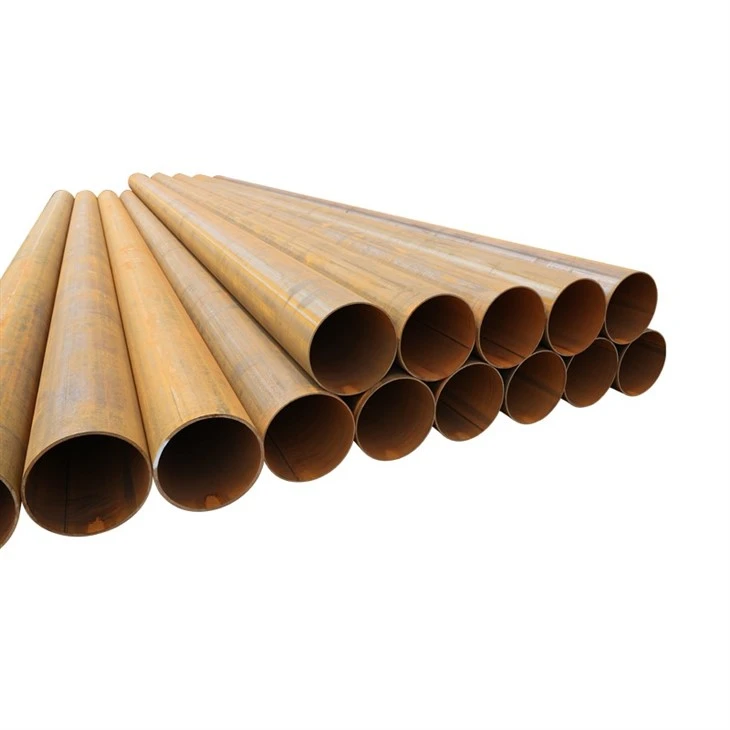

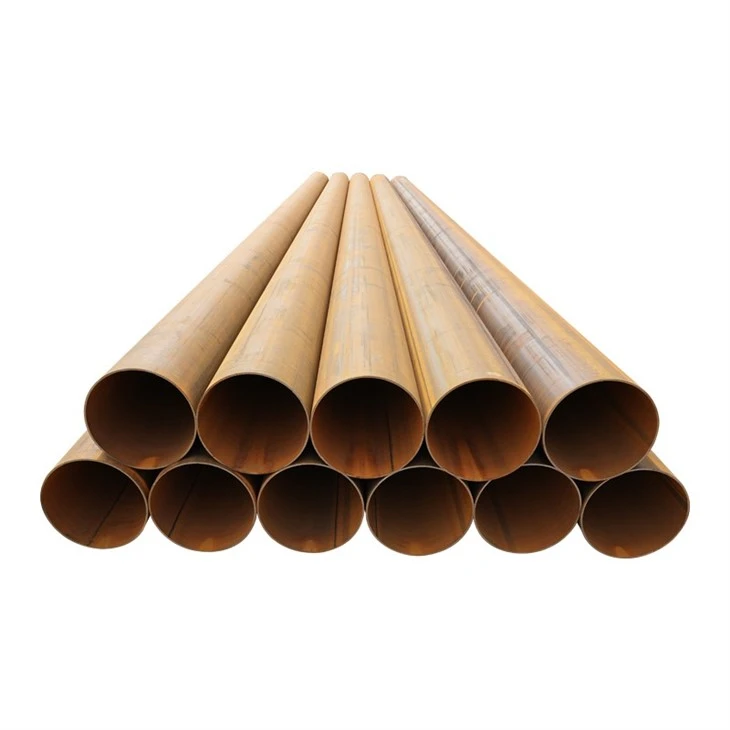

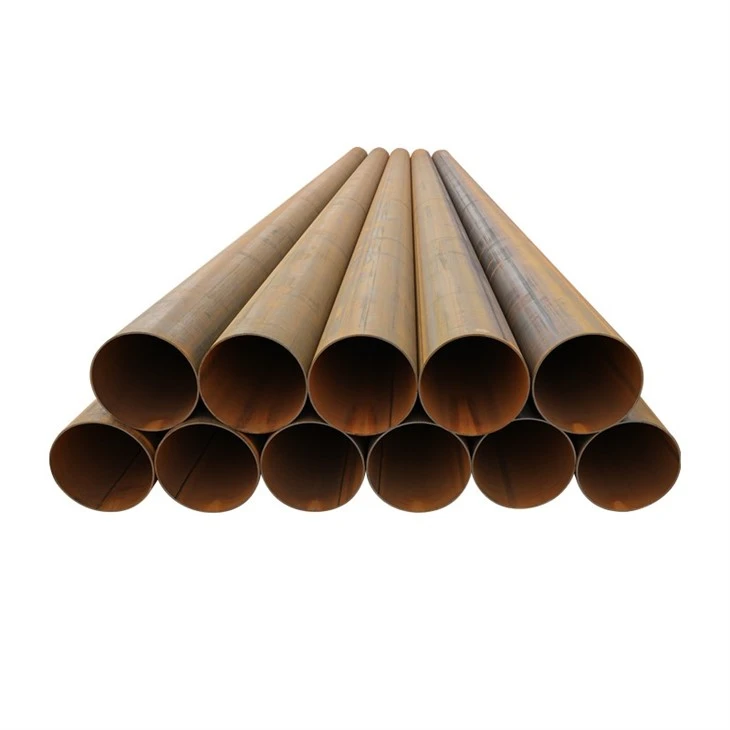

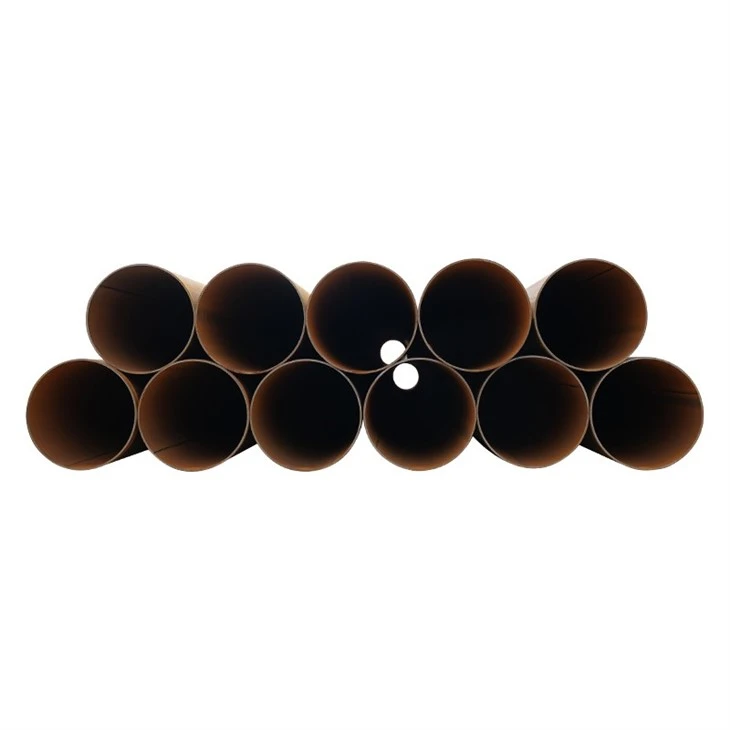

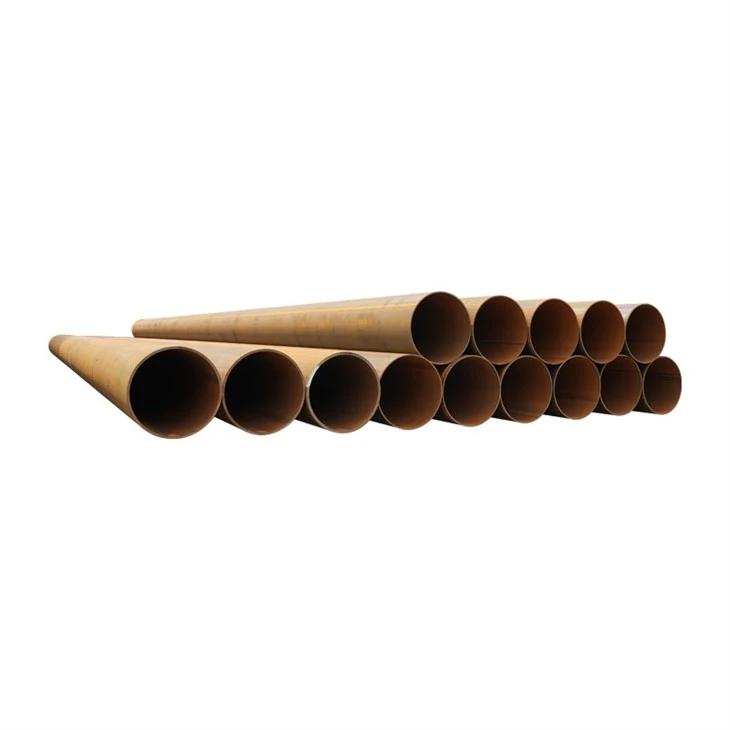

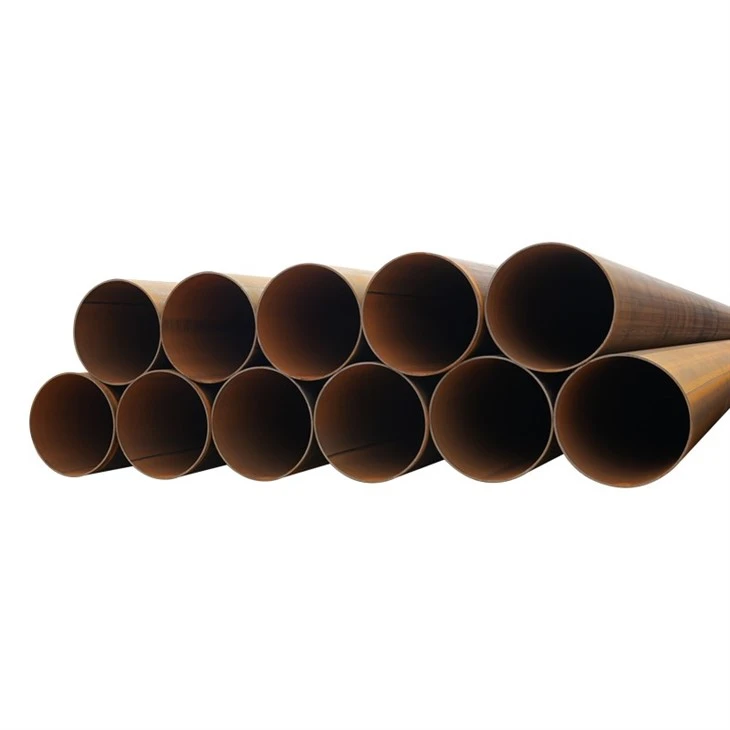

Huayang EN 10210-1 S420NH LSAW steel pipe is designed for high-strength structural applications requiring reliable load-bearing capacity and controlled welded performance.
| Parameter | Specification |
|---|---|
| Material Grade | S420NH |
| Material Number | 1.8750 |
| Standard | EN 10210-1 |
| Manufacturing Process | LSAW |
| Welding Method | Double Submerged Arc Welding |
| Product Type | Hot Finished Structural Hollow Section |
| Main Application | High-Strength Structural Members |
EN 10210-1 specifies hot-finished structural hollow sections, with S420NH classified as a fine-grain structural steel grade for demanding structural applications.
S420NH Material Performance
S420NH provides a minimum yield strength of 420 MPa for wall thickness up to 16 mm, decreasing to 400 MPa for thicknesses above 16 mm up to 40 mm and 390 MPa above 40 mm up to 65 mm. Its tensile strength is 520–680 MPa, with a minimum longitudinal elongation of 19%. The grade also provides impact toughness of 40 J at -20°C. Its fine-grain composition supports strength, toughness and weldability for high-strength structural fabrication. Huayang can provide dimensional inspection, weld nondestructive testing and other quality controls according to project requirements.
Our Certificate
Bundling and loading onto vehicles
Pipe Detaild Packages
| Specification | Pcs per Bundle | Bundling Layer Pattern | CBM per Bundle | |
| OD (mm) | Wall Thickness (mm) | |||
| 48.3 | 3.68 | 91 | 6,7,8,9,10,11,10,9,8,7,6 | 1.69 |
| 5.08 | 61 | 5,6,7,8,9,8,7,6,5 | 1.13 | |
| 60.3 | 3.91 | 61 | 5,6,7,8,9,8,7,6,5 | 1.77 |
| 5.54 | 37 | 4,5,6,7,6,5,4 | 1.07 | |
| 73 | 5.16 | 37 | 4,5,6,7,6,5,4 | 1.57 |
| 7.01 | 24 | 4,5,6,5,4 | 0.96 | |
| 88.9 | 5.49 | 24 | 4,5,6,5,4 | 1.42 |
| 7.62 | 19 | 3,4,5,4,3 | 1.19 | |
| 114.3 | 6.02 | 19 | 3,4,5,4,3 | 1.96 |
| 8.56 | 10 | 3,4,3 | 0.94 | |
| 141.3 | 6.55 | 10 | 3,4,3 | 1.44 |
| 9.53 | 7 | 2,3,2 | 1.08 | |
| 168.3 | 7.11 | 10 | 3,4,3 | 2.04 |
| 10.97 | 7 | 2,3,2 | 1.53 | |
| 219.1 | 8.18 | 7 | 2,3,2 | 2.59 |
| 12.7 | 5 | 2,3 | 1.73 | |
| 273 | 9.27 | 5 | 2,3 | 2.68 |
| 15.09 | 3 | 1,2 | 1.79 | |
| 323.8 | 10.31 | 3 | 1,2 | 2.52 |
| 17.48 | 2 | 1,1 | 1.26 | |
Pipe Protection
Pipe-end protection is advisable in case the pipe-ends are bevelled at the pipe manufacturer. In the case of overseas transport, there is an especially increased risk of damaged pipe-ends. This is caused by extra handling procedures in ports and shifting of the pipes onboard vessels.
In addition to end caps or protective rings, external wrapping with protective cloth can be applied along the pipe body. This wrapping helps to safeguard the coating surface from scratches, moisture, and contamination during long-distance transportation or prolonged outdoor storage. Especially for coated or painted pipes, the additional protective cloth layer significantly reduces the risk of mechanical damage, UV exposure, and corrosion initiation, ensuring the pipes arrive at the destination in optimal condition.
