Introduction
The world of steel pipe dimensions can be confusing, especially when the term Nominal Pipe Size (NPS) comes into play. Unlike OD or ID, which are physical measurements, NPS is a standardized designation system. Understanding NPS is essential for engineers, buyers, and contractors to ensure compatibility and proper communication in global markets.
This article explains the concept of Nominal Pipe Size (NPS), its relationship to OD and ID, and why it matters in different industries.
Defining Nominal Pipe Size (NPS)
Nominal Pipe Size (NPS) is a North American standard that provides a convenient reference system for pipe sizes. It does not directly match either OD or ID but acts as a classification.
For pipes with NPS 14 and above, the NPS value equals the OD in inches. For smaller pipes, the relationship is more complex: NPS represents an approximate size, while OD and ID vary depending on wall thickness (schedule).
For example:
- An NPS 6 pipe has an OD of 6.625 inches, not exactly 6 inches.
- Its ID depends on whether it is Schedule 40, Schedule 80, or another rating.
Why NPS Was Developed
Before NPS, confusion arose because pipes were described by their approximate ID, which changed with wall thickness. This led to mismatches between pipes and fittings. The NPS system was developed to standardize communication, ensuring engineers and suppliers had a consistent way to specify pipe sizes.
Today, NPS is widely used across industries in North America and internationally, with equivalents such as DN (Diameter Nominal) in Europe.
NPS in ERW Steel Pipe Applications

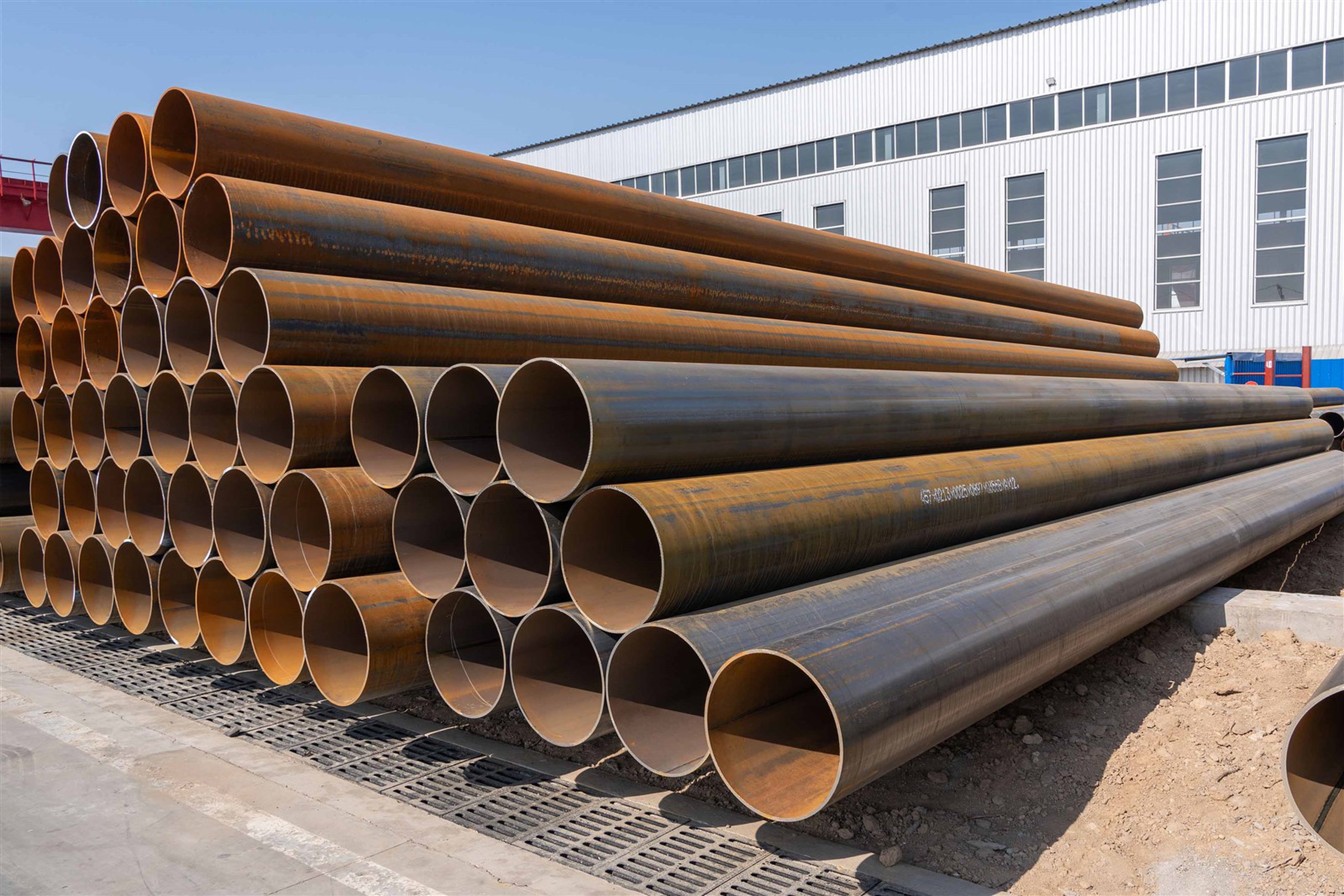

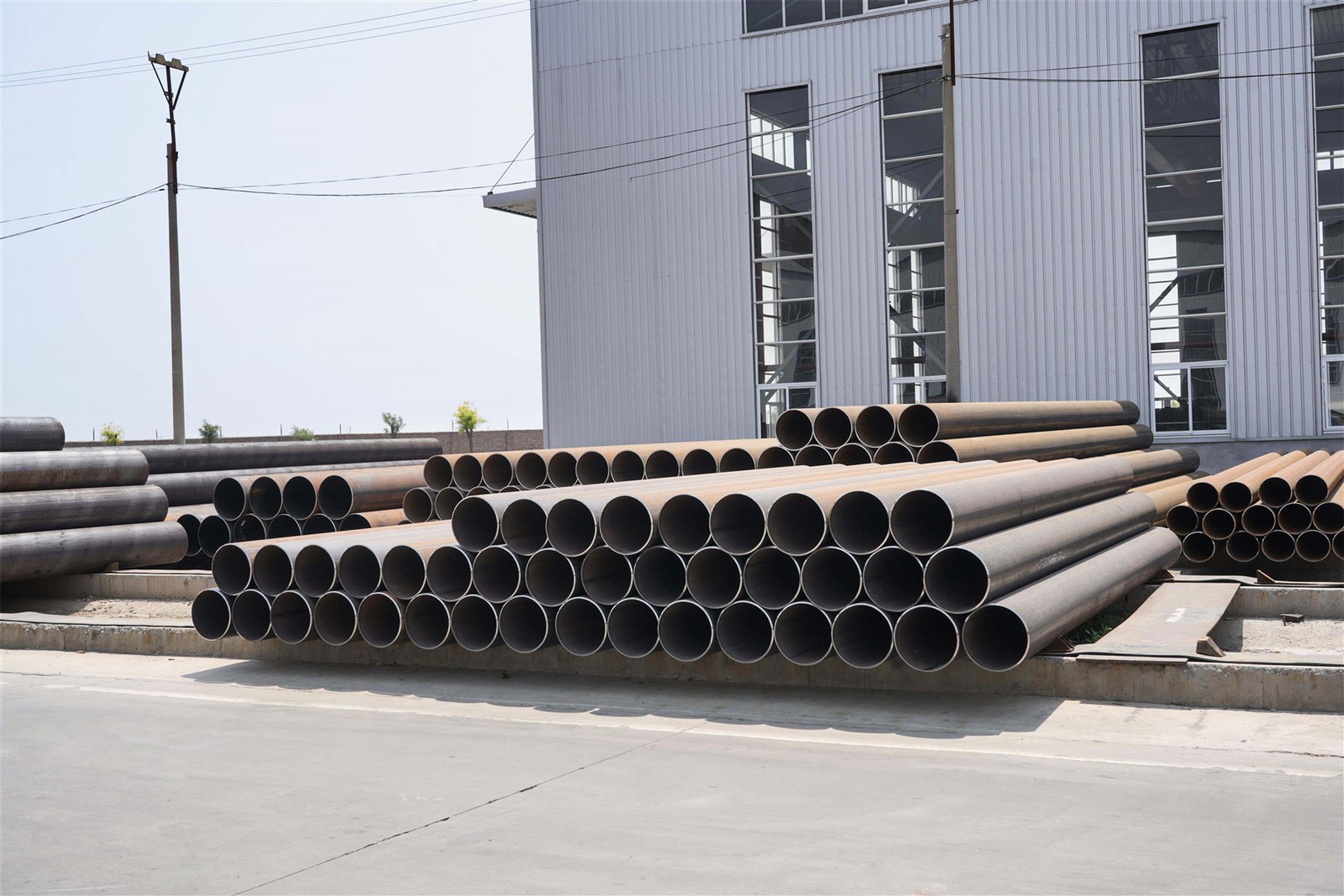

In ERW steel pipe manufacturing, NPS provides the industry standard for product specification. Whether supplying construction companies, oil and gas operators, or water utilities, Huayang Steel Pipe ensures that its products align with NPS standards for seamless compatibility with fittings and systems.
Table: NPS vs OD and ID (Schedule 40 Example)
| NPS (inches) | OD (inches) | ID (inches) | Wall Thickness (inches) |
|---|---|---|---|
| 2 | 2.375 | 2.067 | 0.154 |
| 4 | 4.500 | 4.026 | 0.237 |
| 6 | 6.625 | 6.065 | 0.280 |
| 10 | 10.750 | 10.020 | 0.365 |
| 12 | 12.750 | 11.938 | 0.406 |
Conclusion
Nominal Pipe Size (NPS) is a standardized system that simplifies communication in the steel pipe industry, but it must be understood alongside OD and ID to ensure accuracy. By combining NPS with wall thickness schedules, engineers and buyers can specify exact dimensions for safe and reliable systems.
At Huayang Steel Pipe, we manufacture ERW steel pipes that meet international NPS standards, ensuring our customers receive products that integrate seamlessly into projects worldwide.
