Product Overview

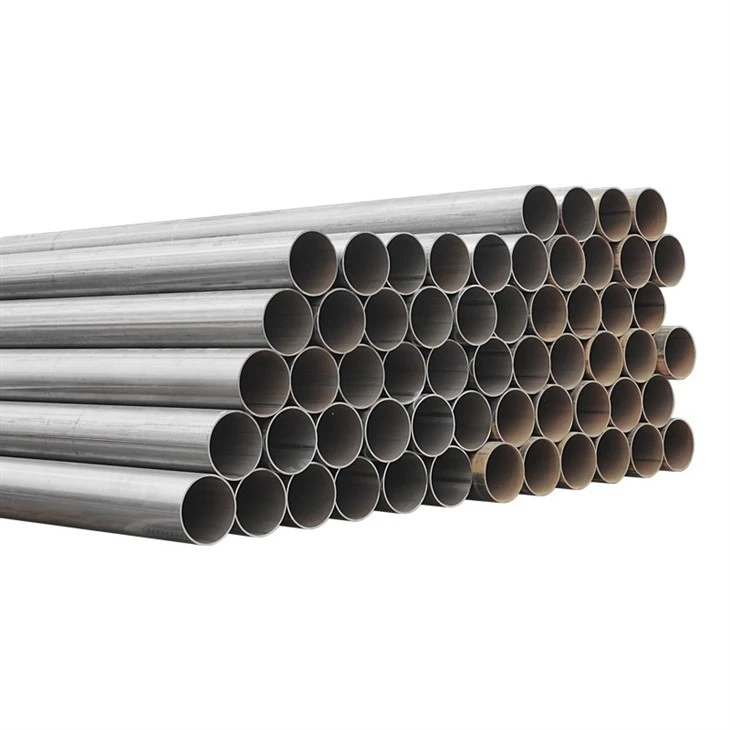

Huayang 108 mm ERW steel pipe is engineered for structural applications demanding high strength, precise dimensions, and outstanding fabrication performance.
| Parameter | Specification |
|---|---|
| Outside Diameter | 108 mm (DN100) |
| Material Grade | EN 10219 S355JR |
| Manufacturing Process | High Frequency ERW |
| Wall Thickness | 3.5–10.0 mm |
| Main Application | Structural Steel Construction |
The pipe combines excellent weld integrity with consistent dimensional accuracy, making it suitable for fabricated steel structures.
Material Performance and Application
Huayang 108 mm ERW steel pipes are manufactured from premium hot-rolled steel coils using advanced high-frequency electric resistance welding technology, ensuring uniform weld fusion, excellent straightness, and tight dimensional tolerances. EN 10219 S355JR is a cold-formed structural steel grade with a minimum yield strength of 355 MPa, tensile strength of 470–630 MPa, and minimum elongation of 20%, providing excellent load-bearing capacity and fabrication performance. The 108 mm diameter is widely used for building columns, steel trusses, machinery frames, warehouses, stadium structures, and infrastructure projects. Every Huayang pipe undergoes online ultrasonic weld inspection, eddy current testing, tensile testing, flattening testing, dimensional verification, and chemical composition analysis to ensure full compliance with EN 10219 requirements and stable structural performance throughout its service life.
Our Certificate
Bundling and loading onto vehicles
Pipe Detaild Packages
| Specification | Pcs per Bundle | Bundling Layer Pattern | CBM per Bundle | |
| OD (mm) | Wall Thickness (mm) | |||
| 48.3 | 3.68 | 91 | 6,7,8,9,10,11,10,9,8,7,6 | 1.69 |
| 5.08 | 61 | 5,6,7,8,9,8,7,6,5 | 1.13 | |
| 60.3 | 3.91 | 61 | 5,6,7,8,9,8,7,6,5 | 1.77 |
| 5.54 | 37 | 4,5,6,7,6,5,4 | 1.07 | |
| 73 | 5.16 | 37 | 4,5,6,7,6,5,4 | 1.57 |
| 7.01 | 24 | 4,5,6,5,4 | 0.96 | |
| 88.9 | 5.49 | 24 | 4,5,6,5,4 | 1.42 |
| 7.62 | 19 | 3,4,5,4,3 | 1.19 | |
| 114.3 | 6.02 | 19 | 3,4,5,4,3 | 1.96 |
| 8.56 | 10 | 3,4,3 | 0.94 | |
| 141.3 | 6.55 | 10 | 3,4,3 | 1.44 |
| 9.53 | 7 | 2,3,2 | 1.08 | |
| 168.3 | 7.11 | 10 | 3,4,3 | 2.04 |
| 10.97 | 7 | 2,3,2 | 1.53 | |
| 219.1 | 8.18 | 7 | 2,3,2 | 2.59 |
| 12.7 | 5 | 2,3 | 1.73 | |
| 273 | 9.27 | 5 | 2,3 | 2.68 |
| 15.09 | 3 | 1,2 | 1.79 | |
| 323.8 | 10.31 | 3 | 1,2 | 2.52 |
| 17.48 | 2 | 1,1 | 1.26 | |
Pipe Protection
Pipe-end protection is advisable in case the pipe-ends are bevelled at the pipe manufacturer. In the case of overseas transport, there is an especially increased risk of damaged pipe-ends. This is caused by extra handling procedures in ports and shifting of the pipes onboard vessels.
In addition to end caps or protective rings, external wrapping with protective cloth can be applied along the pipe body. This wrapping helps to safeguard the coating surface from scratches, moisture, and contamination during long-distance transportation or prolonged outdoor storage. Especially for coated or painted pipes, the additional protective cloth layer significantly reduces the risk of mechanical damage, UV exposure, and corrosion initiation, ensuring the pipes arrive at the destination in optimal condition.
