Hebei Huayang Steel Pipe Co., Ltd is one of the leading manufacturers and suppliers of 89mm erw steel pipe astm a53 water transmission pipe in China. Please feel free to buy cheap 89mm erw steel pipe astm a53 water transmission pipe from our factory. All customized products are with high quality and low price.
Product Overview

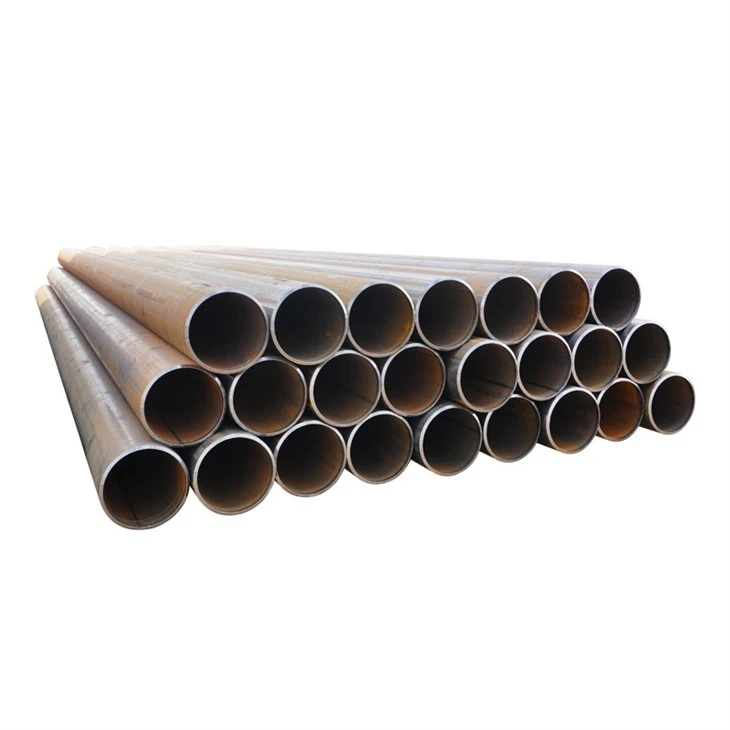

Huayang 89 mm ERW steel pipe is designed for water transmission systems requiring reliable pressure performance, accurate dimensions, and durable service.
| Parameter | Specification |
|---|---|
| Outside Diameter | 89 mm (DN80) |
| Material Grade | ASTM A53 Grade B |
| Manufacturing | ERW High Frequency Welding |
| Wall Thickness | 3.2–8.0 mm |
| Application | Water transmission pipelines |
This ERW steel pipe provides stable hydraulic performance and dependable operation for municipal and industrial water distribution networks.
Material Performance and Application
Huayang 89 mm ASTM A53 Grade B ERW steel pipes are manufactured using advanced high-frequency electric resistance welding with continuous process monitoring to achieve excellent weld integrity, consistent wall thickness, and precise dimensional tolerances. ASTM A53 Grade B has a minimum yield strength of 240 MPa and a minimum tensile strength of 415 MPa, offering excellent weldability, ductility, and pressure-bearing capability for fluid transportation. The 89 mm outside diameter is widely used in municipal water supply, industrial process water, irrigation systems, and utility pipeline installations. To extend service life, Huayang can supply FBE, 2PE, 3PE, hot-dip galvanized, or internal epoxy-lined pipes according to project requirements. Every pipe undergoes hydrostatic pressure testing, ultrasonic weld inspection, eddy current testing, dimensional verification, and mechanical property testing to ensure full compliance with ASTM A53 and reliable long-term performance.
Our Certificate
Bundling and loading onto vehicles
Pipe Detaild Packages
| Specification | Pcs per Bundle | Bundling Layer Pattern | CBM per Bundle | |
| OD (mm) | Wall Thickness (mm) | |||
| 48.3 | 3.68 | 91 | 6,7,8,9,10,11,10,9,8,7,6 | 1.69 |
| 5.08 | 61 | 5,6,7,8,9,8,7,6,5 | 1.13 | |
| 60.3 | 3.91 | 61 | 5,6,7,8,9,8,7,6,5 | 1.77 |
| 5.54 | 37 | 4,5,6,7,6,5,4 | 1.07 | |
| 73 | 5.16 | 37 | 4,5,6,7,6,5,4 | 1.57 |
| 7.01 | 24 | 4,5,6,5,4 | 0.96 | |
| 88.9 | 5.49 | 24 | 4,5,6,5,4 | 1.42 |
| 7.62 | 19 | 3,4,5,4,3 | 1.19 | |
| 114.3 | 6.02 | 19 | 3,4,5,4,3 | 1.96 |
| 8.56 | 10 | 3,4,3 | 0.94 | |
| 141.3 | 6.55 | 10 | 3,4,3 | 1.44 |
| 9.53 | 7 | 2,3,2 | 1.08 | |
| 168.3 | 7.11 | 10 | 3,4,3 | 2.04 |
| 10.97 | 7 | 2,3,2 | 1.53 | |
| 219.1 | 8.18 | 7 | 2,3,2 | 2.59 |
| 12.7 | 5 | 2,3 | 1.73 | |
| 273 | 9.27 | 5 | 2,3 | 2.68 |
| 15.09 | 3 | 1,2 | 1.79 | |
| 323.8 | 10.31 | 3 | 1,2 | 2.52 |
| 17.48 | 2 | 1,1 | 1.26 | |
Pipe Protection
Pipe-end protection is advisable in case the pipe-ends are bevelled at the pipe manufacturer. In the case of overseas transport, there is an especially increased risk of damaged pipe-ends. This is caused by extra handling procedures in ports and shifting of the pipes onboard vessels.
In addition to end caps or protective rings, external wrapping with protective cloth can be applied along the pipe body. This wrapping helps to safeguard the coating surface from scratches, moisture, and contamination during long-distance transportation or prolonged outdoor storage. Especially for coated or painted pipes, the additional protective cloth layer significantly reduces the risk of mechanical damage, UV exposure, and corrosion initiation, ensuring the pipes arrive at the destination in optimal condition.
