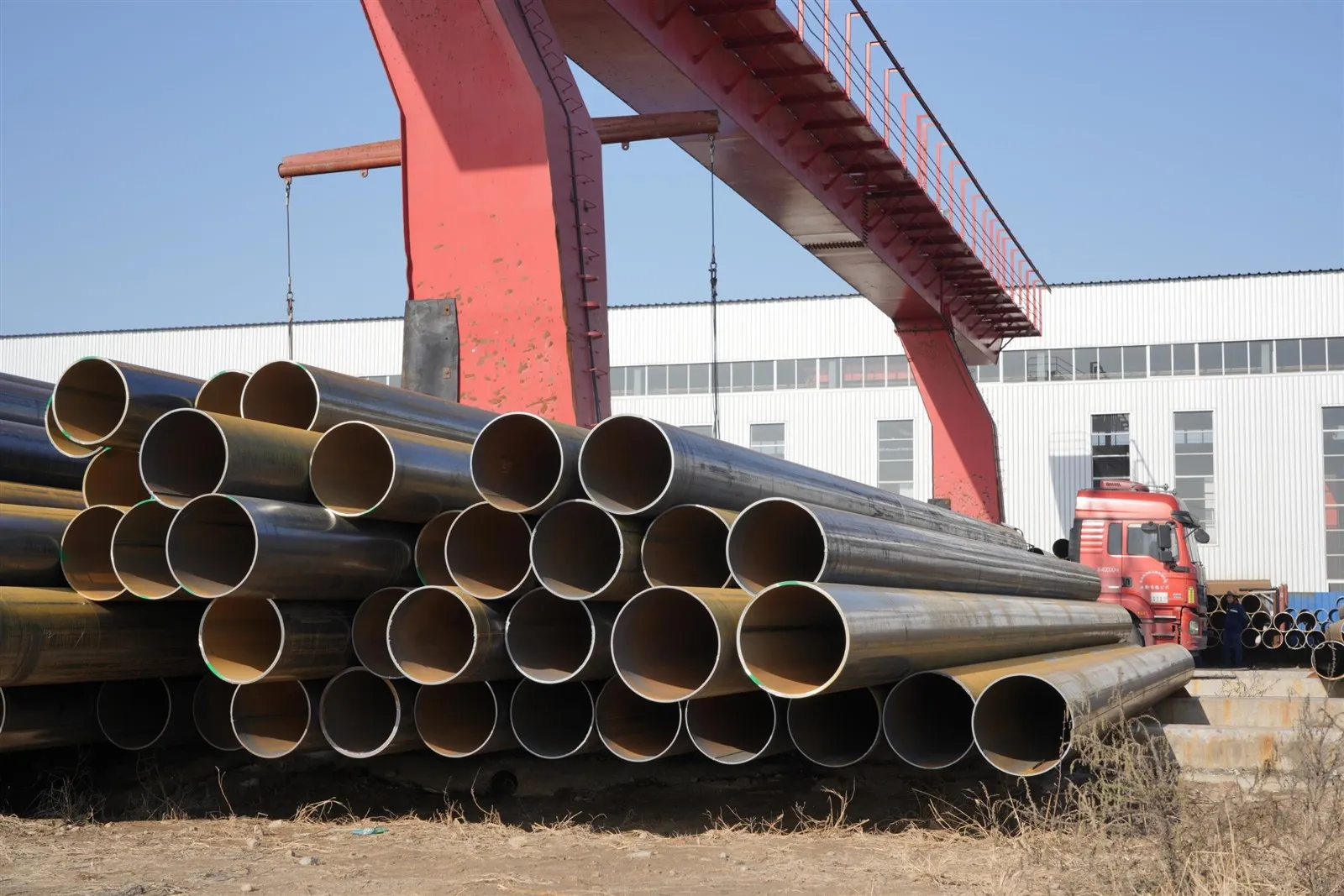

Electric Resistance Welded pipe, commonly referred to as ERW pipe, is widely used in oil and gas transmission, water supply systems, structural construction, and mechanical fabrication. Because these applications often involve pressure containment, load-bearing functions, or safety-critical performance, ERW carbon steel pipe must comply with clearly defined technical standards. Standards ensure consistency in chemical composition, mechanical properties, dimensional tolerances, manufacturing methods, inspection procedures, and testing requirements. Understanding what governs ERW pipe production is essential for engineers, procurement specialists, and project managers who need to select materials that meet regulatory and performance expectations.
International Standards Governing ERW Carbon Steel Pipe
API Standards for Line Pipe
In the oil and gas sector, one of the most recognized standards for ERW carbon steel pipe is API 5L. This specification, issued by the American Petroleum Institute, defines requirements for line pipe used in pipeline transportation systems. API 5L covers chemical composition limits, mechanical properties such as yield and tensile strength, hydrostatic testing, non-destructive examination of weld seams, and dimensional tolerances.
ERW pipes manufactured under API 5L are typically used for oil, natural gas, and petroleum product transportation. The standard categorizes pipes into different grades, such as Grade B, X42, X52, and higher, each corresponding to a minimum yield strength level. Compliance ensures that the pipe can safely withstand internal pressure and environmental loads over extended service periods.
ASTM Standards for Structural and General Piping
For structural and general industrial applications, ASTM standards are commonly applied. ASTM A53 specifies requirements for welded and seamless carbon steel pipe for mechanical and pressure applications. It defines chemical composition ranges, tensile properties, hydrostatic testing requirements, and permissible dimensional variations.
ASTM A500 is another important standard that applies to cold-formed welded carbon steel structural tubing. Although it is primarily intended for structural use rather than fluid transport, it is frequently associated with ERW manufacturing methods. The standard emphasizes yield strength, tensile strength, and dimensional accuracy for load-bearing applications.
The following table summarizes key international standards commonly used for ERW carbon steel pipe.
| Standard | Application Scope | Key Requirements | Typical Use |
|---|---|---|---|
| API 5L | Oil and gas pipelines | Strength grades, hydro test, NDT | Line pipe transmission |
| ASTM A53 | General pressure and mechanical | Chemical limits, tensile properties | Water, gas, industrial piping |
| ASTM A500 | Structural tubing | Yield strength and dimensional control | Construction frameworks |
| EN 10219 | Cold-formed structural hollow sections | Mechanical and geometric tolerances | European structural projects |
These standards define the technical baseline for ERW pipe production in various industries.
Core Technical Requirements in ERW Pipe Standards
Chemical Composition Control
Standards specify maximum allowable percentages of carbon, manganese, phosphorus, sulfur, and other alloying elements. Controlling chemical composition ensures weldability, toughness, and consistent mechanical behavior. Excessive carbon content can increase hardness and reduce ductility, which may compromise weld seam performance.
Carbon equivalent value is often evaluated to assess weldability. Lower carbon equivalent improves resistance to cold cracking during field welding. Standards limit alloying elements to maintain a balance between strength and fabrication performance.
Mechanical Property Verification
Mechanical testing is a fundamental component of ERW pipe standards. Yield strength and tensile strength must meet minimum specified values according to grade classification. Elongation requirements ensure that the material retains sufficient ductility under load.
Impact testing may be required for pipes used in low-temperature environments. Charpy impact tests verify fracture toughness and resistance to brittle failure. These requirements are especially important in pipeline systems operating in cold climates.
The following table outlines typical mechanical property requirements for selected ERW pipe standards.
| Standard and Grade | Minimum Yield Strength | Minimum Tensile Strength | Additional Tests |
|---|---|---|---|
| API 5L Grade B | 245 MPa | 415 MPa | Hydrostatic test, NDT |
| API 5L X52 | 360 MPa | 460 MPa | Impact test if required |
| ASTM A53 Grade B | 240 MPa | 415 MPa | Hydrostatic test |
| ASTM A500 Grade B | 315 MPa | 400 MPa | Dimensional verification |
Meeting these mechanical requirements confirms that the pipe can withstand operational stresses safely.
Dimensional and Manufacturing Requirements
Standards for ERW carbon steel pipe also define allowable tolerances for outside diameter, wall thickness, straightness, and ovality. Dimensional accuracy is essential for ensuring proper fit-up during installation and compatibility with fittings and flanges.
Manufacturing requirements typically include specifications for weld seam integrity. Non-destructive testing methods such as ultrasonic inspection or eddy current testing are used to detect weld defects. Hydrostatic pressure testing is performed to confirm pressure containment capability.
Heat treatment requirements may also be included, particularly for higher grade or structural applications. Post-weld heat treatment ensures uniform microstructure in the heat-affected zone and reduces residual stress.
Certification and Documentation
Compliance with standards is verified through mill test certificates. These documents provide detailed information about chemical composition, mechanical test results, heat number traceability, and inspection outcomes. For regulated industries such as oil and gas, certification is mandatory before pipe acceptance.
Third-party inspection agencies may also be involved to validate compliance. Documentation transparency enhances quality assurance and reduces project risk. Engineers rely on these records to confirm that the supplied ERW carbon steel pipe meets design specifications.
Selection Considerations Based on Standards
Choosing the appropriate standard depends on application requirements. For long-distance oil and gas transmission, API 5L compliance is typically mandatory. For structural frameworks, ASTM A500 or EN 10219 may be more relevant. For general water or low-pressure piping, ASTM A53 often provides sufficient performance criteria.
Selecting a higher grade does not always mean better suitability. Over-specifying strength can increase cost without providing functional benefits. Engineers must evaluate pressure level, environmental conditions, temperature range, and installation method when determining which standard to apply.
Conclusion
The standard for ERW pipe is defined by internationally recognized specifications such as API 5L, ASTM A53, ASTM A500, and EN 10219. These standards regulate chemical composition, mechanical properties, dimensional tolerances, manufacturing processes, and inspection procedures. Compliance ensures safety, reliability, and interoperability across diverse engineering applications.
Understanding the technical framework behind ERW carbon steel pipe standards allows informed material selection and risk management. Whether used in oil and gas pipelines, structural systems, or municipal infrastructure, adherence to established standards guarantees that ERW pipe performs consistently under specified operating conditions.
