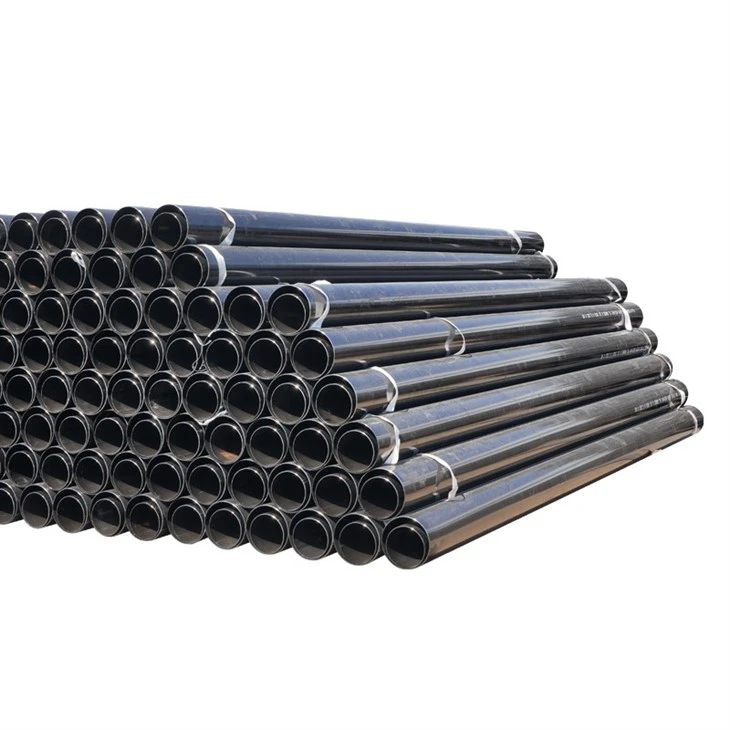

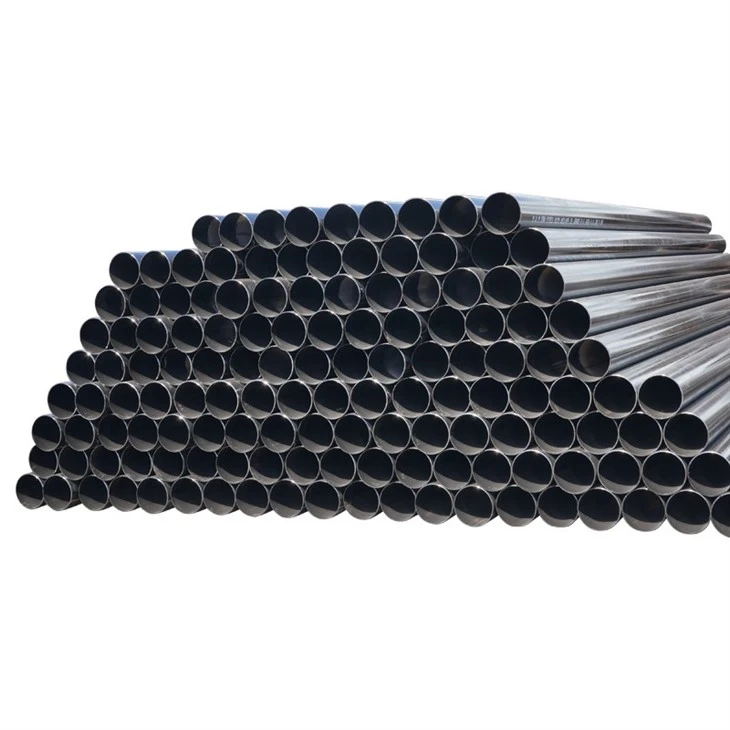

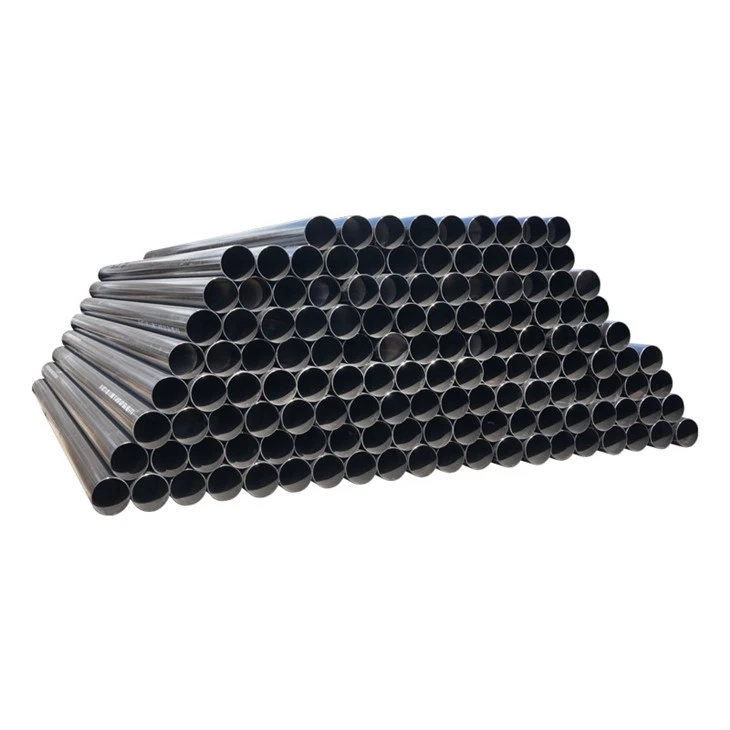

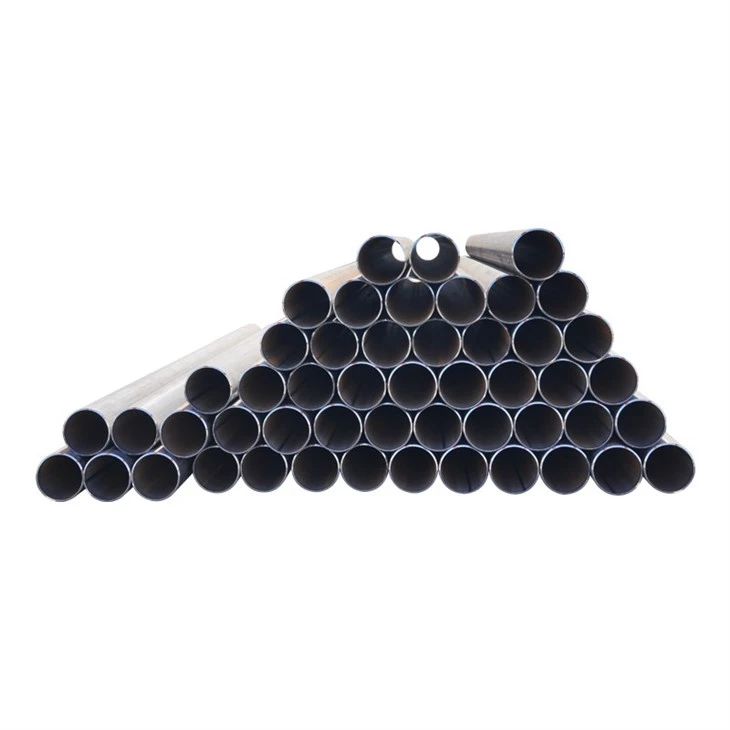

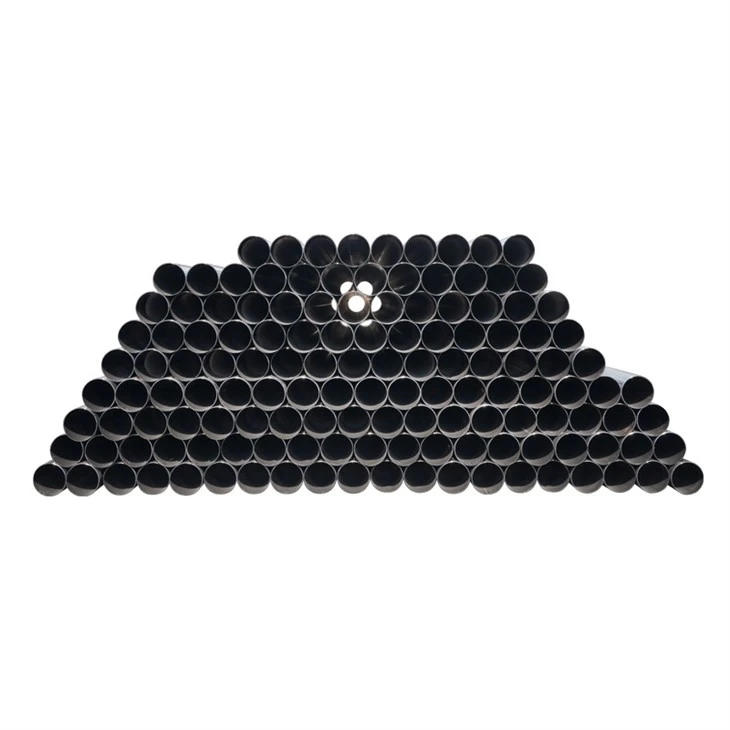

Hebei Huayang Steel Pipe Co., Ltd is one of the leading manufacturers and suppliers of astm a53 grade b dn500 erw steel pipe in China. Please feel free to buy cheap astm a53 grade b dn500 erw steel pipe from our factory. All customized products are with high quality and low price.
Product Overview
Huayang DN500 ERW steel pipe provides dependable carbon steel performance, consistent weld quality, and dimensional accuracy for large-diameter pipeline applications.
| Parameter | Specification |
|---|---|
| Outside Diameter | 508 mm |
| Nominal Diameter | DN500 |
| Material Grade | ASTM A53 Grade B |
| Manufacturing Process | High Frequency ERW |
| Wall Thickness | 6.0–22.0 mm |
| Main Application | Industrial and Utility Pipelines |
The 508 mm diameter offers substantial flow capacity while maintaining practical fabrication, transportation, and installation characteristics.
API 5L X60 PSL2 Material Performance
ASTM A53 Grade B is a widely used carbon steel grade with a minimum yield strength of 240 MPa and a minimum tensile strength of 415 MPa. Its balanced mechanical properties provide good strength, ductility, and weldability for general pressure and mechanical applications. Grade B is commonly used in water, air, steam, and utility pipeline systems where the service conditions are compatible with the specification. Huayang DN500 ERW pipe is produced by controlled forming and high-frequency electric resistance welding, with close control of weld integrity, outside diameter, straightness, and wall thickness. Quality inspection can include hydrostatic testing, weld inspection, tensile testing, flattening testing, dimensional verification, and chemical composition analysis according to the applicable ASTM requirements. For buried or moisture-exposed service, FBE, 2PE, 3PE, and internal epoxy coating systems can be supplied to improve corrosion resistance and extend operating life.
Our Certificate
Bundling and loading onto vehicles
Pipe Detaild Packages
| Specification | Pcs per Bundle | Bundling Layer Pattern | CBM per Bundle | |
| OD (mm) | Wall Thickness (mm) | |||
| 48.3 | 3.68 | 91 | 6,7,8,9,10,11,10,9,8,7,6 | 1.69 |
| 5.08 | 61 | 5,6,7,8,9,8,7,6,5 | 1.13 | |
| 60.3 | 3.91 | 61 | 5,6,7,8,9,8,7,6,5 | 1.77 |
| 5.54 | 37 | 4,5,6,7,6,5,4 | 1.07 | |
| 73 | 5.16 | 37 | 4,5,6,7,6,5,4 | 1.57 |
| 7.01 | 24 | 4,5,6,5,4 | 0.96 | |
| 88.9 | 5.49 | 24 | 4,5,6,5,4 | 1.42 |
| 7.62 | 19 | 3,4,5,4,3 | 1.19 | |
| 114.3 | 6.02 | 19 | 3,4,5,4,3 | 1.96 |
| 8.56 | 10 | 3,4,3 | 0.94 | |
| 141.3 | 6.55 | 10 | 3,4,3 | 1.44 |
| 9.53 | 7 | 2,3,2 | 1.08 | |
| 168.3 | 7.11 | 10 | 3,4,3 | 2.04 |
| 10.97 | 7 | 2,3,2 | 1.53 | |
| 219.1 | 8.18 | 7 | 2,3,2 | 2.59 |
| 12.7 | 5 | 2,3 | 1.73 | |
| 273 | 9.27 | 5 | 2,3 | 2.68 |
| 15.09 | 3 | 1,2 | 1.79 | |
| 323.8 | 10.31 | 3 | 1,2 | 2.52 |
| 17.48 | 2 | 1,1 | 1.26 | |
Pipe Protection
Pipe-end protection is advisable in case the pipe-ends are bevelled at the pipe manufacturer. In the case of overseas transport, there is an especially increased risk of damaged pipe-ends. This is caused by extra handling procedures in ports and shifting of the pipes onboard vessels.
In addition to end caps or protective rings, external wrapping with protective cloth can be applied along the pipe body. This wrapping helps to safeguard the coating surface from scratches, moisture, and contamination during long-distance transportation or prolonged outdoor storage. Especially for coated or painted pipes, the additional protective cloth layer significantly reduces the risk of mechanical damage, UV exposure, and corrosion initiation, ensuring the pipes arrive at the destination in optimal condition.
