Hebei Huayang Steel Pipe Co., Ltd is one of the leading manufacturers and suppliers of api 5l gr.b dn350 erw steel pipe water supply in China. Please feel free to buy cheap api 5l gr.b dn350 erw steel pipe water supply from our factory. All customized products are with high quality and low price.
Product Overview

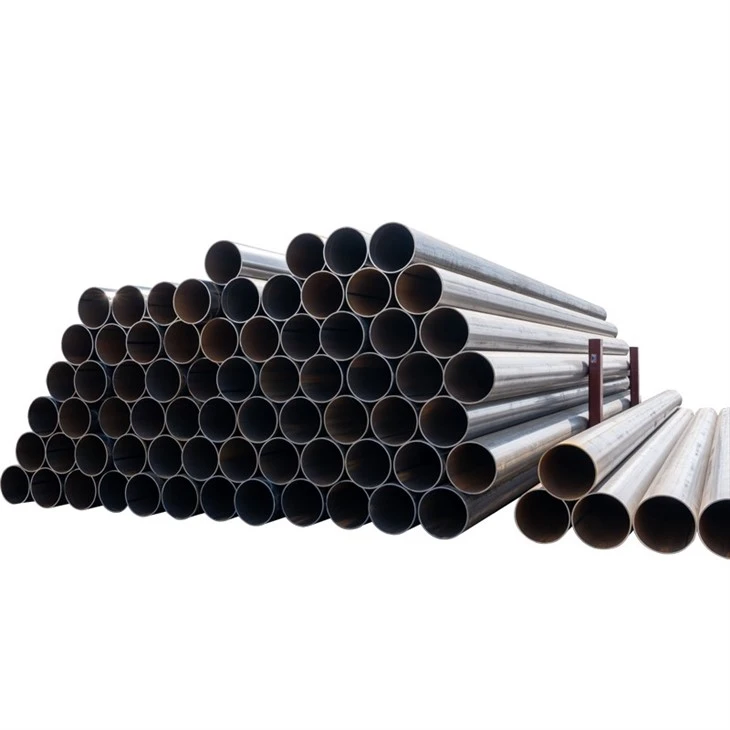

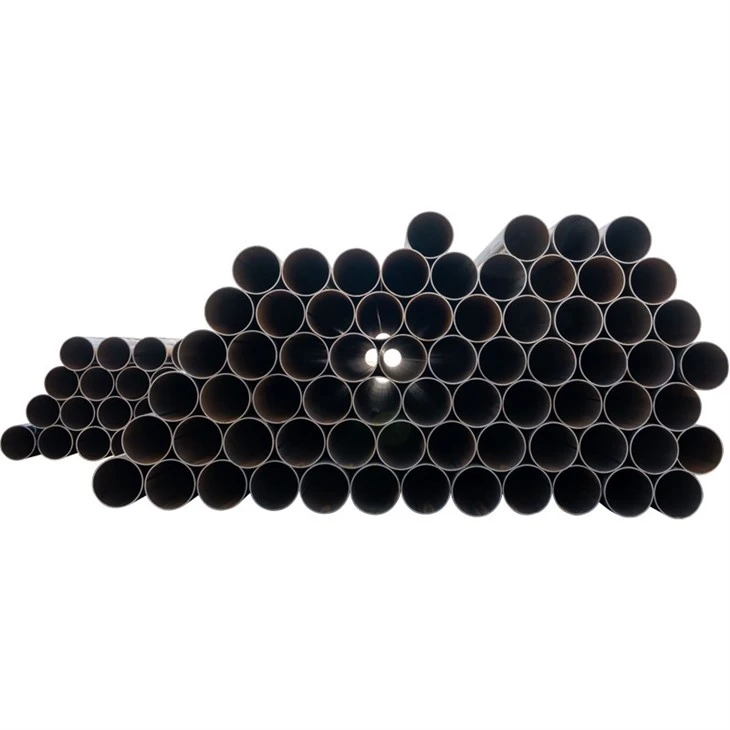

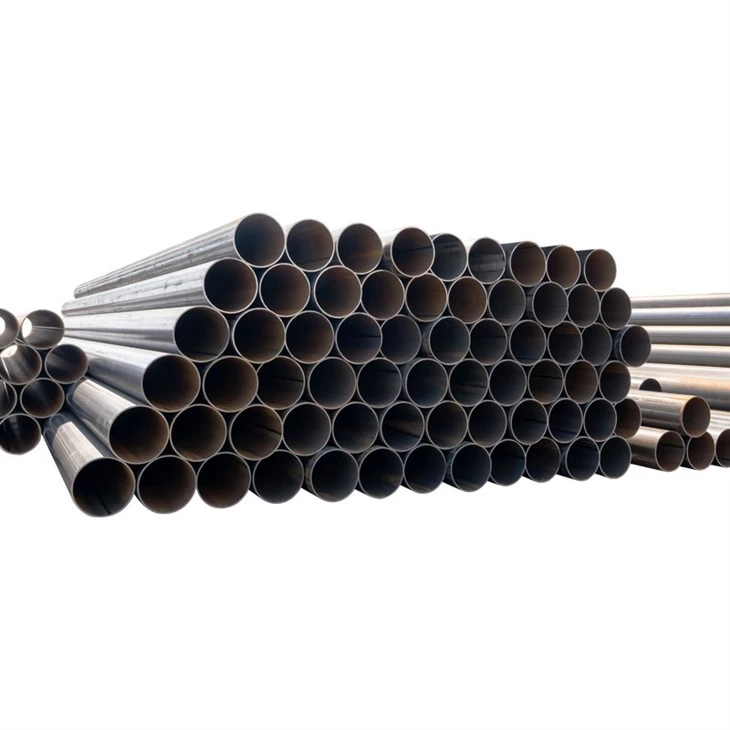

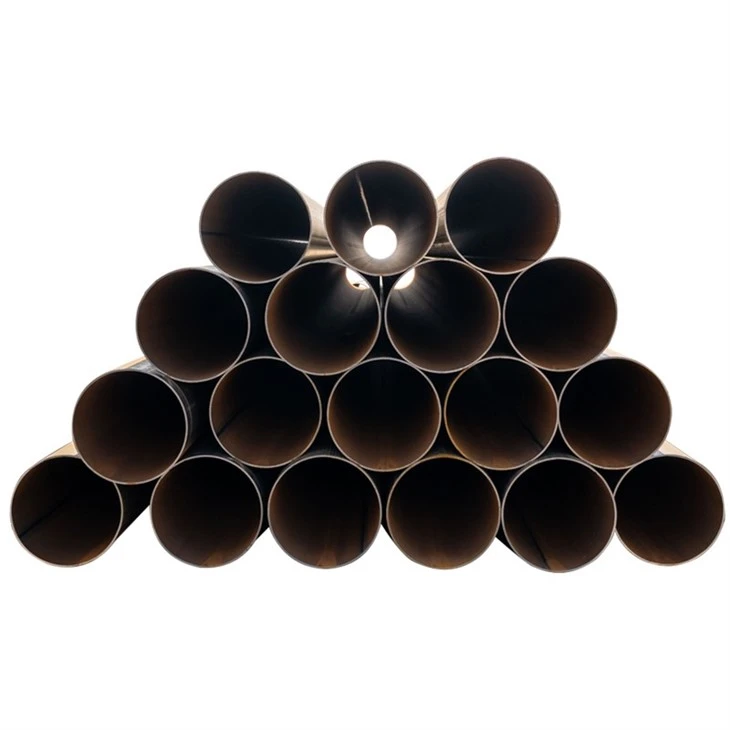

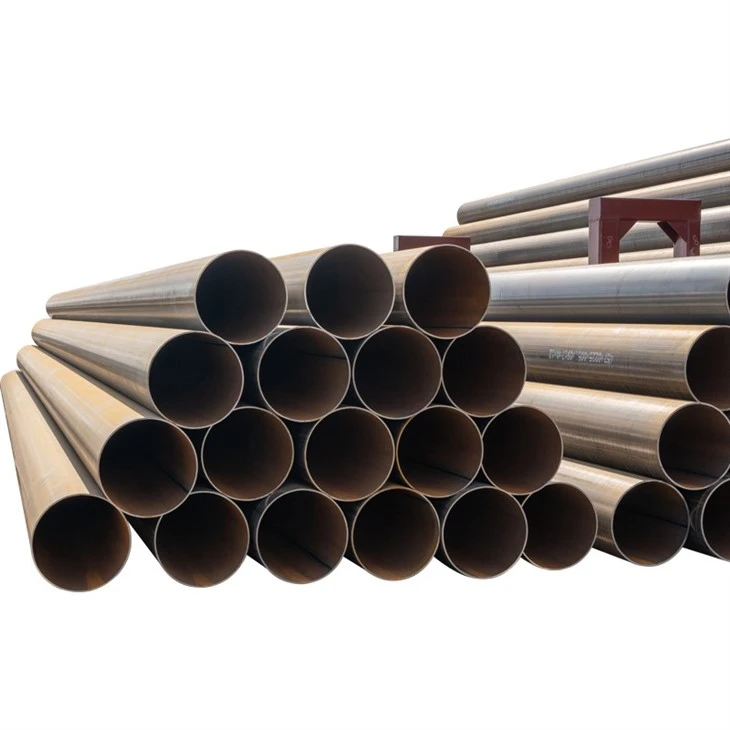

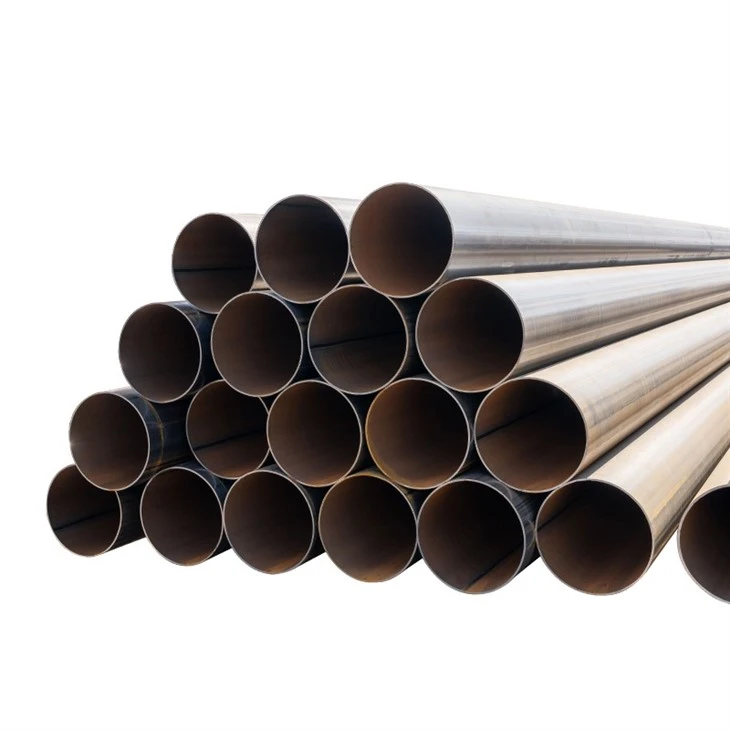

Huayang DN150 ERW steel pipe is manufactured for oil and gas systems requiring stable mechanical properties, accurate dimensions, and reliable weld performance.
| Parameter | Specification |
|---|---|
| Outside Diameter | 168.3 mm |
| Nominal Diameter | DN150 |
| Material Grade | API 5L Grade B PSL1 |
| Manufacturing Process | High Frequency ERW |
| Wall Thickness | 4.5–14.0 mm |
| Main Application | Oil and Gas Pipeline |
The DN150 size offers an efficient solution for branch lines, gathering systems, and medium-capacity fluid transportation.
API 5L X60 PSL2 Material Performance
API 5L Grade B PSL1 has a minimum yield strength of 245 MPa and a minimum tensile strength of 415 MPa, providing a balanced combination of strength, ductility, and weldability for conventional pipeline service. The grade is commonly used in oil and gas gathering lines, fuel transportation, and industrial pipeline networks where PSL1 requirements are appropriate. Huayang DN150 ERW pipe is produced through controlled forming and high-frequency electric resistance welding, with close attention to weld integrity, outside diameter, straightness, and wall thickness. Quality control can include hydrostatic pressure testing, ultrasonic or other weld inspection, tensile testing, flattening testing, dimensional verification, and chemical composition analysis according to the applicable specification. For buried oil and gas pipelines, FBE, 2PE, and 3PE external coatings can be supplied to improve corrosion resistance and extend service life under soil and moisture exposure.
Our Certificate
Bundling and loading onto vehicles
Pipe Detaild Packages
| Specification | Pcs per Bundle | Bundling Layer Pattern | CBM per Bundle | |
| OD (mm) | Wall Thickness (mm) | |||
| 48.3 | 3.68 | 91 | 6,7,8,9,10,11,10,9,8,7,6 | 1.69 |
| 5.08 | 61 | 5,6,7,8,9,8,7,6,5 | 1.13 | |
| 60.3 | 3.91 | 61 | 5,6,7,8,9,8,7,6,5 | 1.77 |
| 5.54 | 37 | 4,5,6,7,6,5,4 | 1.07 | |
| 73 | 5.16 | 37 | 4,5,6,7,6,5,4 | 1.57 |
| 7.01 | 24 | 4,5,6,5,4 | 0.96 | |
| 88.9 | 5.49 | 24 | 4,5,6,5,4 | 1.42 |
| 7.62 | 19 | 3,4,5,4,3 | 1.19 | |
| 114.3 | 6.02 | 19 | 3,4,5,4,3 | 1.96 |
| 8.56 | 10 | 3,4,3 | 0.94 | |
| 141.3 | 6.55 | 10 | 3,4,3 | 1.44 |
| 9.53 | 7 | 2,3,2 | 1.08 | |
| 168.3 | 7.11 | 10 | 3,4,3 | 2.04 |
| 10.97 | 7 | 2,3,2 | 1.53 | |
| 219.1 | 8.18 | 7 | 2,3,2 | 2.59 |
| 12.7 | 5 | 2,3 | 1.73 | |
| 273 | 9.27 | 5 | 2,3 | 2.68 |
| 15.09 | 3 | 1,2 | 1.79 | |
| 323.8 | 10.31 | 3 | 1,2 | 2.52 |
| 17.48 | 2 | 1,1 | 1.26 | |
Pipe Protection
Pipe-end protection is advisable in case the pipe-ends are bevelled at the pipe manufacturer. In the case of overseas transport, there is an especially increased risk of damaged pipe-ends. This is caused by extra handling procedures in ports and shifting of the pipes onboard vessels.
In addition to end caps or protective rings, external wrapping with protective cloth can be applied along the pipe body. This wrapping helps to safeguard the coating surface from scratches, moisture, and contamination during long-distance transportation or prolonged outdoor storage. Especially for coated or painted pipes, the additional protective cloth layer significantly reduces the risk of mechanical damage, UV exposure, and corrosion initiation, ensuring the pipes arrive at the destination in optimal condition.
