Hebei Huayang Steel Pipe Co., Ltd is one of the leading manufacturers and suppliers of iso 3183 psl2 l245me lsaw steel pipe for oil and gas gathering lines in China. Please feel free to buy cheap iso 3183 psl2 l245me lsaw steel pipe for oil and gas gathering lines from our factory. All customized products are with high quality and low price.
Product Overview

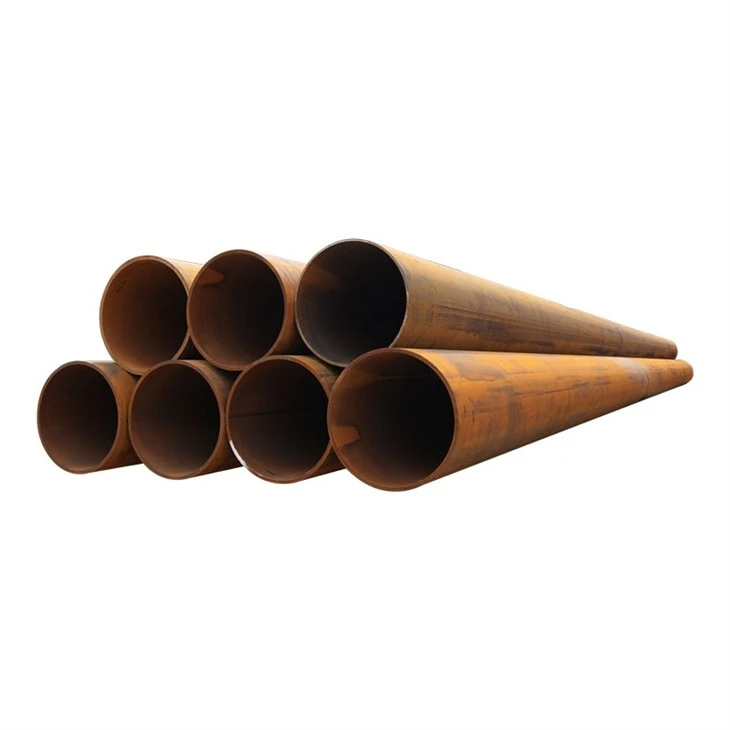

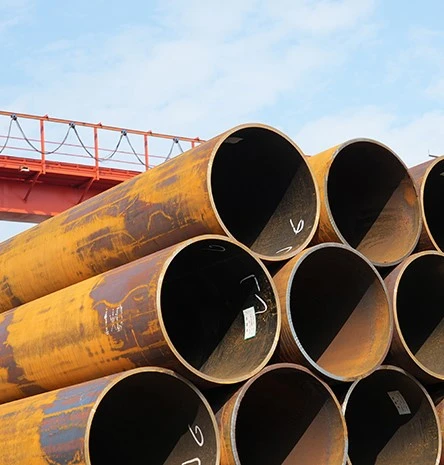

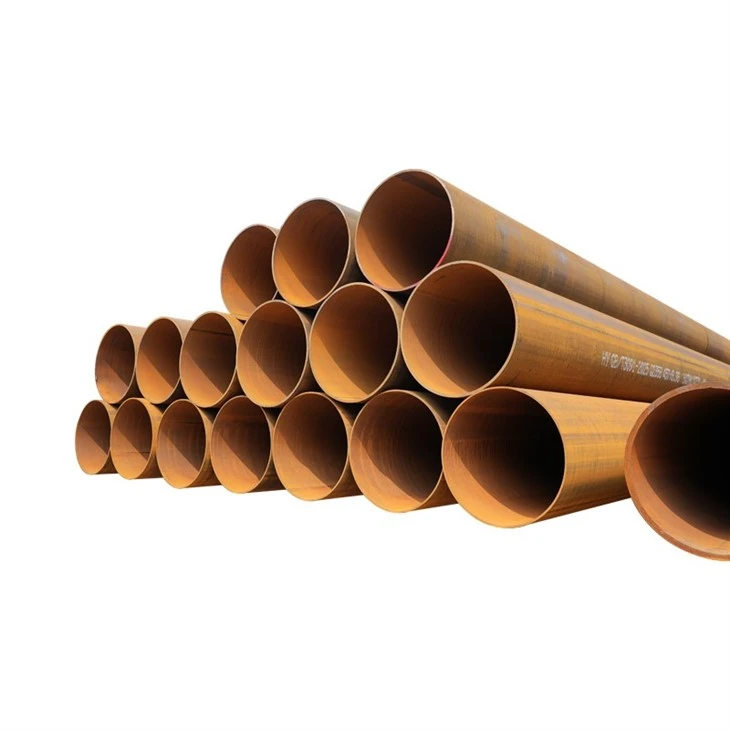

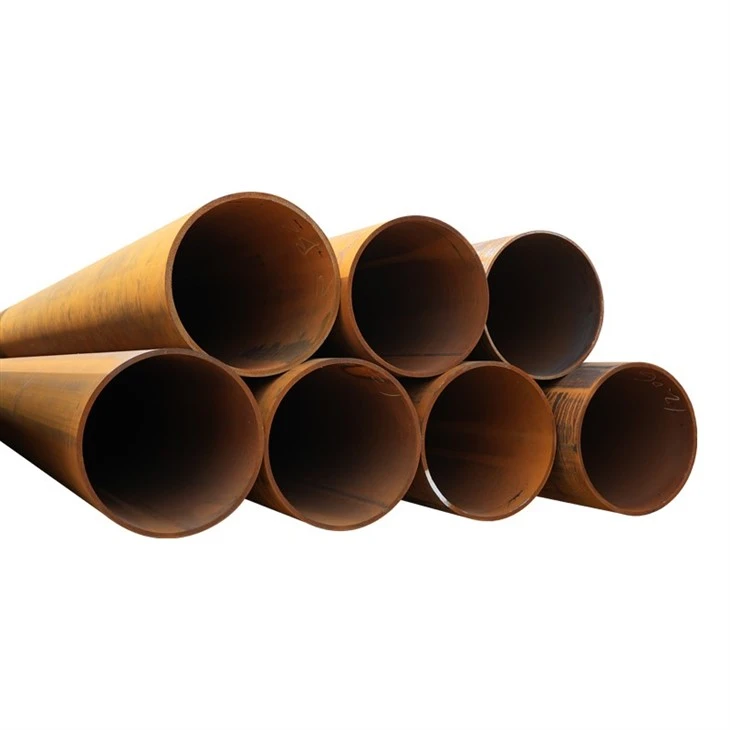

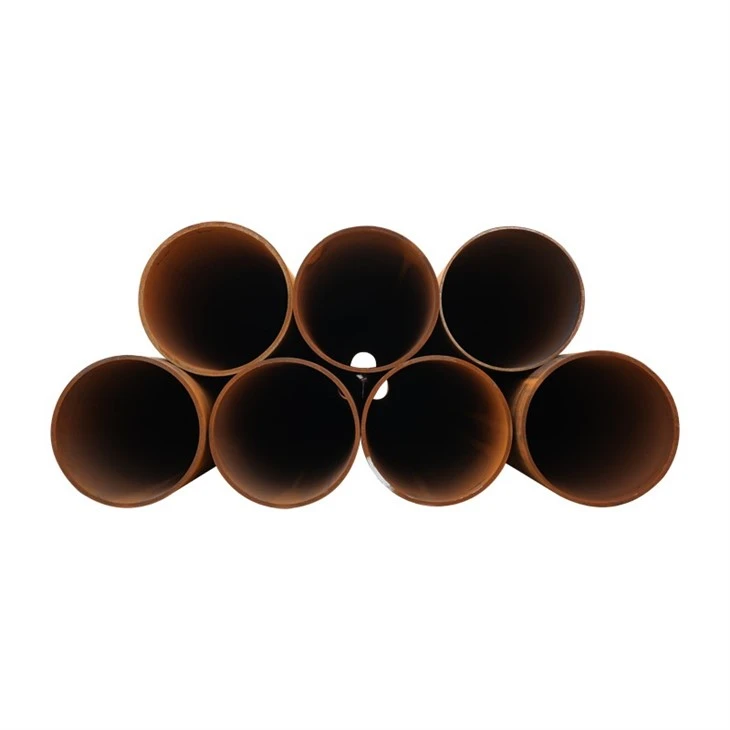

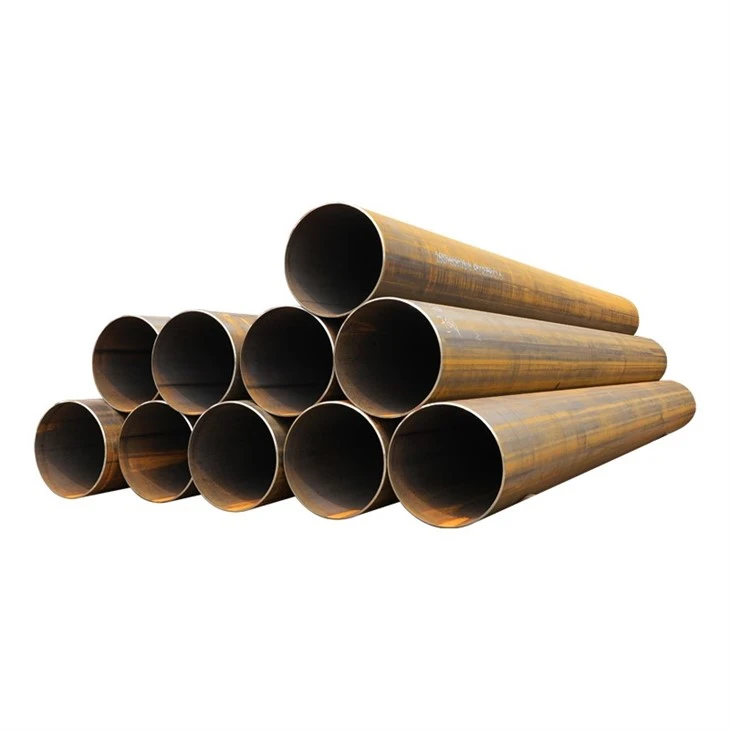

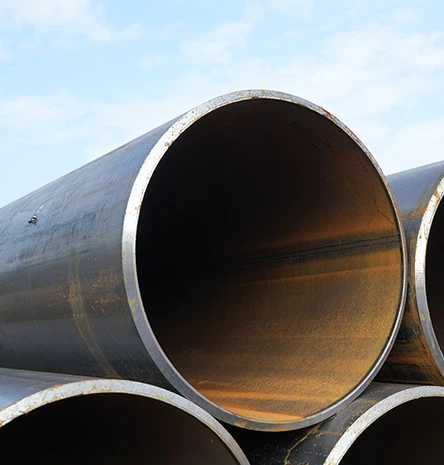

Huayang L245ME LSAW steel pipe is designed for oil and gas gathering lines, combining controlled strength with reliable welded performance.
| Parameter | Specification |
|---|---|
| Material Grade | L245ME |
| Product Specification Level | PSL2 |
| Manufacturing Process | LSAW |
| Welding Method | Double Submerged Arc Welding |
| Product Standard | ISO 3183 |
| Main Application | Oil and Gas Gathering Lines |
LSAW production is suitable for large-diameter gathering pipelines, providing controlled plate forming, stable longitudinal weld quality and consistent dimensional accuracy.
L245ME Material Performance
L245ME is an ISO 3183 PSL2 pipeline steel grade corresponding to the BME strength level. For pipe wall thickness up to 25 mm, ISO 3183 specifies a minimum yield strength of 245 MPa and tensile strength of 415–655 MPa, with a maximum yield-to-tensile ratio of 0.85. The M designation indicates thermomechanically controlled material, supporting a refined microstructure and balanced strength and toughness. PSL2 also imposes tighter requirements for chemical composition, mechanical properties, impact toughness and testing than PSL1. Huayang manufactures LSAW pipe through controlled forming and double-sided submerged arc welding, with ultrasonic, radiographic and hydrostatic testing available according to project requirements.
Our Certificate
Bundling and loading onto vehicles
Pipe Detaild Packages
| Specification | Pcs per Bundle | Bundling Layer Pattern | CBM per Bundle | |
| OD (mm) | Wall Thickness (mm) | |||
| 48.3 | 3.68 | 91 | 6,7,8,9,10,11,10,9,8,7,6 | 1.69 |
| 5.08 | 61 | 5,6,7,8,9,8,7,6,5 | 1.13 | |
| 60.3 | 3.91 | 61 | 5,6,7,8,9,8,7,6,5 | 1.77 |
| 5.54 | 37 | 4,5,6,7,6,5,4 | 1.07 | |
| 73 | 5.16 | 37 | 4,5,6,7,6,5,4 | 1.57 |
| 7.01 | 24 | 4,5,6,5,4 | 0.96 | |
| 88.9 | 5.49 | 24 | 4,5,6,5,4 | 1.42 |
| 7.62 | 19 | 3,4,5,4,3 | 1.19 | |
| 114.3 | 6.02 | 19 | 3,4,5,4,3 | 1.96 |
| 8.56 | 10 | 3,4,3 | 0.94 | |
| 141.3 | 6.55 | 10 | 3,4,3 | 1.44 |
| 9.53 | 7 | 2,3,2 | 1.08 | |
| 168.3 | 7.11 | 10 | 3,4,3 | 2.04 |
| 10.97 | 7 | 2,3,2 | 1.53 | |
| 219.1 | 8.18 | 7 | 2,3,2 | 2.59 |
| 12.7 | 5 | 2,3 | 1.73 | |
| 273 | 9.27 | 5 | 2,3 | 2.68 |
| 15.09 | 3 | 1,2 | 1.79 | |
| 323.8 | 10.31 | 3 | 1,2 | 2.52 |
| 17.48 | 2 | 1,1 | 1.26 | |
Pipe Protection
Pipe-end protection is advisable in case the pipe-ends are bevelled at the pipe manufacturer. In the case of overseas transport, there is an especially increased risk of damaged pipe-ends. This is caused by extra handling procedures in ports and shifting of the pipes onboard vessels.
In addition to end caps or protective rings, external wrapping with protective cloth can be applied along the pipe body. This wrapping helps to safeguard the coating surface from scratches, moisture, and contamination during long-distance transportation or prolonged outdoor storage. Especially for coated or painted pipes, the additional protective cloth layer significantly reduces the risk of mechanical damage, UV exposure, and corrosion initiation, ensuring the pipes arrive at the destination in optimal condition.
