Product Overview

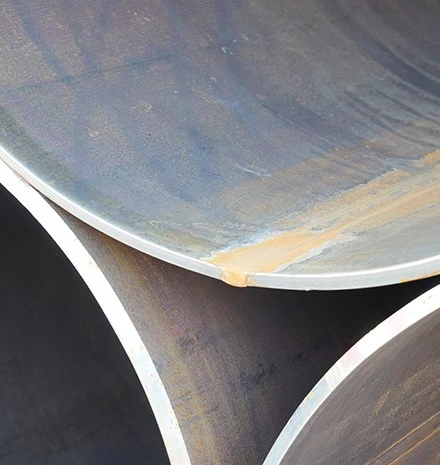

Huayang 813 mm LSAW steel pipe uses API 5L X60 PSL2 steel for natural gas pipelines requiring high strength, toughness and reliable welded performance.
| Parameter | Specification |
|---|---|
| Outside Diameter | 813 mm |
| Material Grade | API 5L X60 |
| Product Specification Level | PSL2 |
| Manufacturing Process | LSAW |
| Welding Method | Double Submerged Arc Welding |
| Main Application | Natural Gas Pipeline |
The 813 mm large diameter provides high gas transmission capacity, while LSAW technology supports stable forming and longitudinal weld quality.
API 5L X60 PSL2 Material Performance
API 5L X60 is a high-strength line pipe grade with a minimum yield strength of 415 MPa and minimum tensile strength of 520 MPa. PSL2 imposes stricter requirements on chemical composition, mechanical properties, toughness, testing and traceability than PSL1, making it suitable for demanding natural gas transmission systems. X60 provides a higher strength level for high-pressure pipeline design while maintaining appropriate weldability and toughness. Huayang manufactures X60 PSL2 LSAW steel pipe through controlled plate forming and double-sided submerged arc welding, with ultrasonic, radiographic, hydrostatic and dimensional testing available according to API 5L and project requirements. External 3PE or FBE coating can also be supplied for long-term pipeline protection.
Our Certificate
Bundling and loading onto vehicles
Pipe Detaild Packages
| Specification | Pcs per Bundle | Bundling Layer Pattern | CBM per Bundle | |
| OD (mm) | Wall Thickness (mm) | |||
| 48.3 | 3.68 | 91 | 6,7,8,9,10,11,10,9,8,7,6 | 1.69 |
| 5.08 | 61 | 5,6,7,8,9,8,7,6,5 | 1.13 | |
| 60.3 | 3.91 | 61 | 5,6,7,8,9,8,7,6,5 | 1.77 |
| 5.54 | 37 | 4,5,6,7,6,5,4 | 1.07 | |
| 73 | 5.16 | 37 | 4,5,6,7,6,5,4 | 1.57 |
| 7.01 | 24 | 4,5,6,5,4 | 0.96 | |
| 88.9 | 5.49 | 24 | 4,5,6,5,4 | 1.42 |
| 7.62 | 19 | 3,4,5,4,3 | 1.19 | |
| 114.3 | 6.02 | 19 | 3,4,5,4,3 | 1.96 |
| 8.56 | 10 | 3,4,3 | 0.94 | |
| 141.3 | 6.55 | 10 | 3,4,3 | 1.44 |
| 9.53 | 7 | 2,3,2 | 1.08 | |
| 168.3 | 7.11 | 10 | 3,4,3 | 2.04 |
| 10.97 | 7 | 2,3,2 | 1.53 | |
| 219.1 | 8.18 | 7 | 2,3,2 | 2.59 |
| 12.7 | 5 | 2,3 | 1.73 | |
| 273 | 9.27 | 5 | 2,3 | 2.68 |
| 15.09 | 3 | 1,2 | 1.79 | |
| 323.8 | 10.31 | 3 | 1,2 | 2.52 |
| 17.48 | 2 | 1,1 | 1.26 | |
Pipe Protection
Pipe-end protection is advisable in case the pipe-ends are bevelled at the pipe manufacturer. In the case of overseas transport, there is an especially increased risk of damaged pipe-ends. This is caused by extra handling procedures in ports and shifting of the pipes onboard vessels.
In addition to end caps or protective rings, external wrapping with protective cloth can be applied along the pipe body. This wrapping helps to safeguard the coating surface from scratches, moisture, and contamination during long-distance transportation or prolonged outdoor storage. Especially for coated or painted pipes, the additional protective cloth layer significantly reduces the risk of mechanical damage, UV exposure, and corrosion initiation, ensuring the pipes arrive at the destination in optimal condition.
