Hebei Huayang Steel Pipe Co., Ltd is one of the leading manufacturers and suppliers of api 5l x60 psl2 650mm lsaw steel pipe in China. Please feel free to buy cheap api 5l x60 psl2 650mm lsaw steel pipe from our factory. All customized products are with high quality and low price.
Product Overview

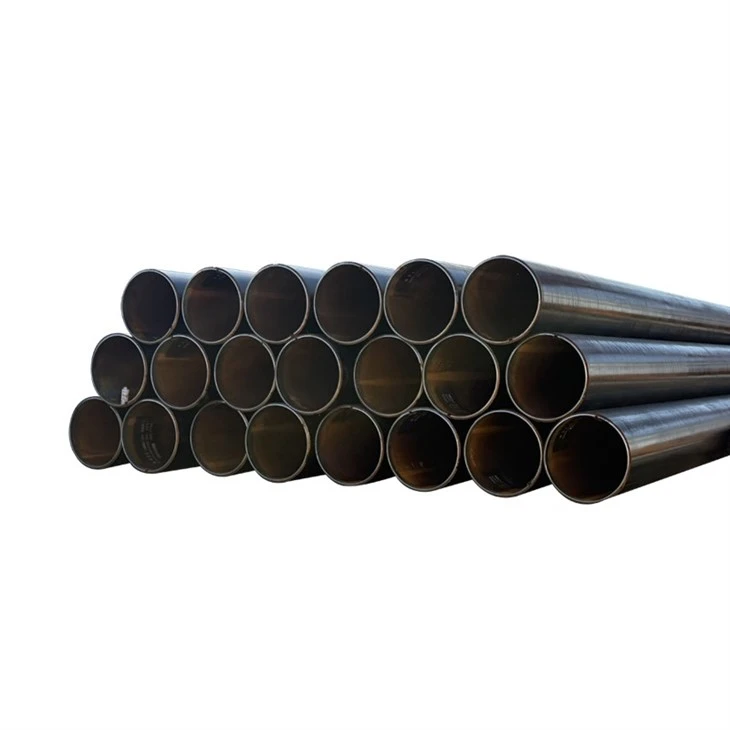

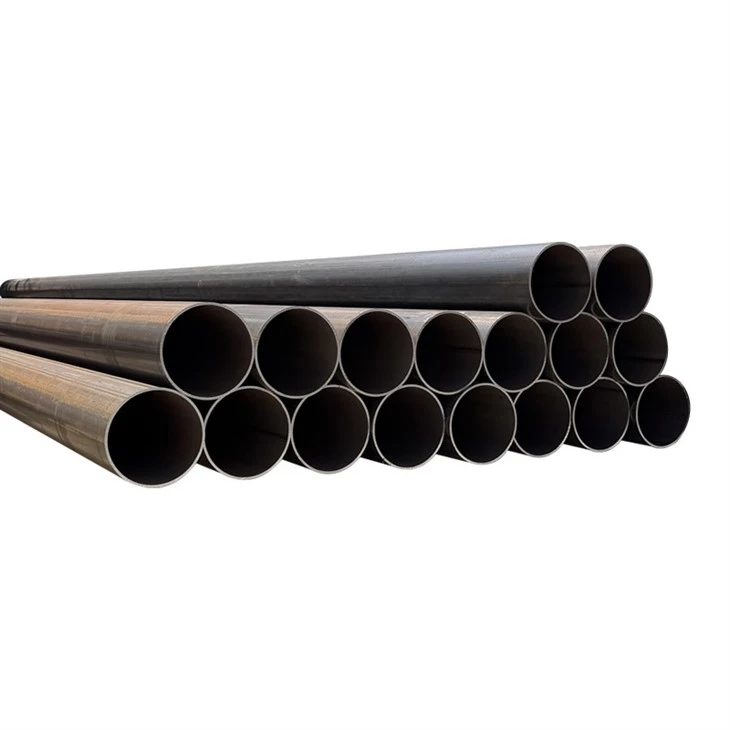

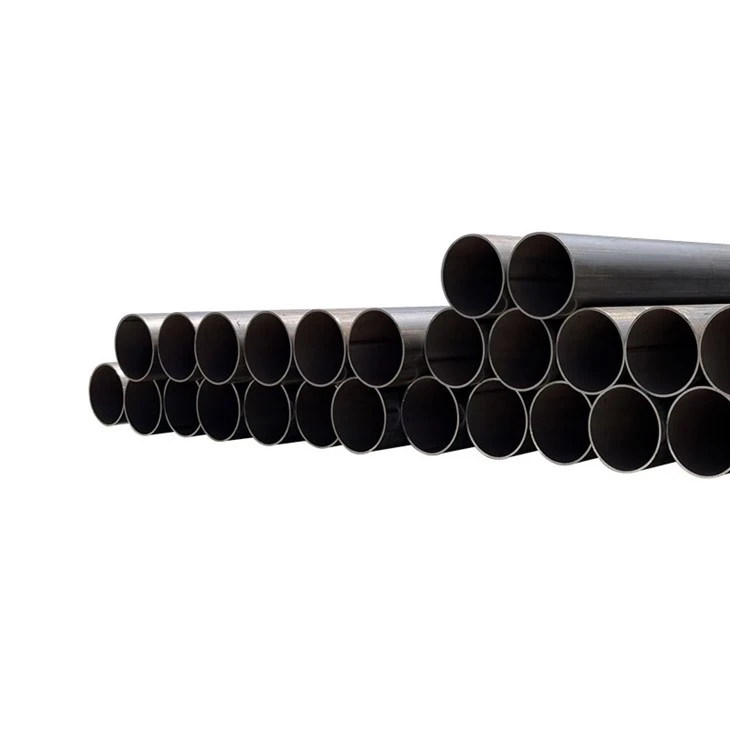

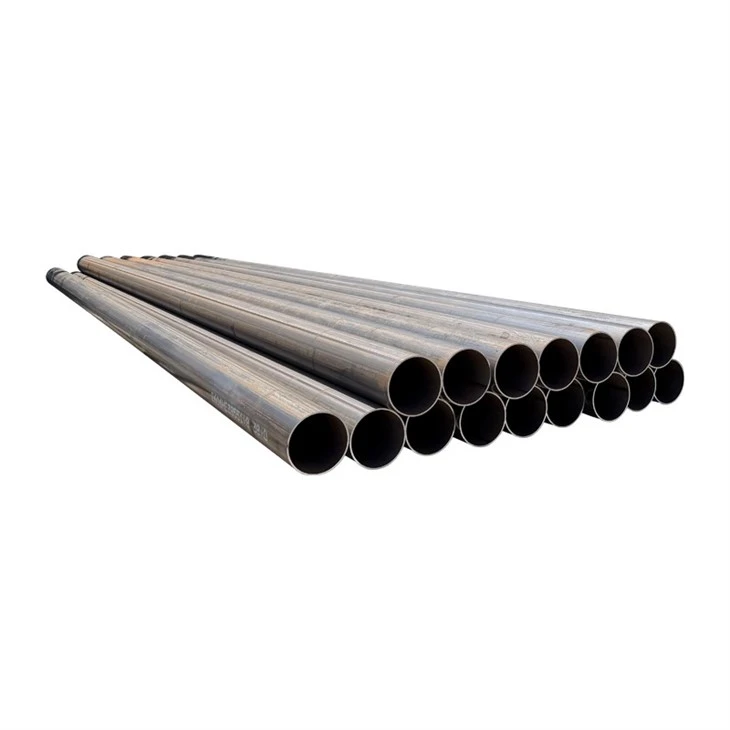

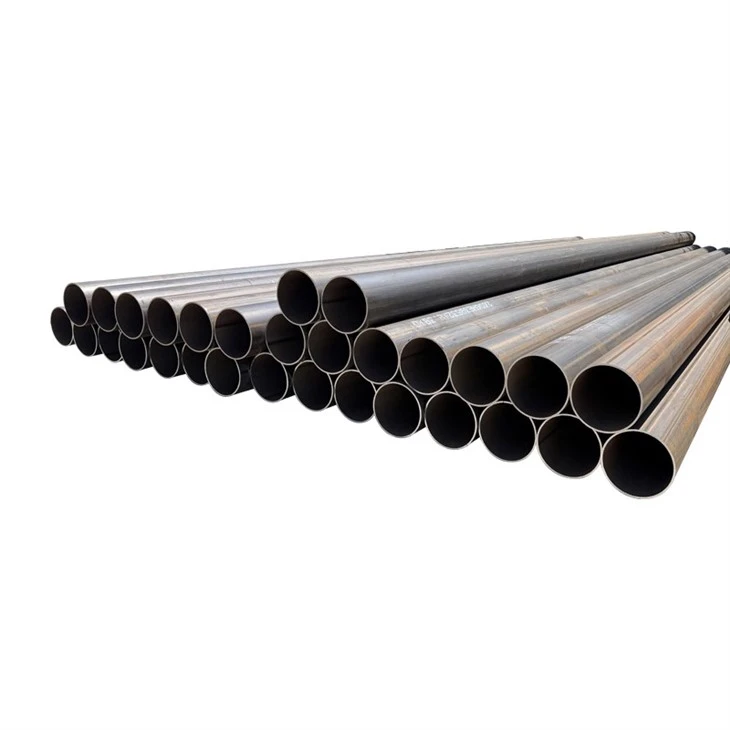

Huayang 650 mm LSAW steel pipe combines API 5L X60 PSL2 high strength with reliable longitudinal submerged arc welding for demanding pipeline service.
| Parameter | Specification |
|---|---|
| Outside Diameter | 650 mm |
| Material Grade | API 5L X60 PSL2 |
| Manufacturing Process | LSAW |
| Welding Method | Double Submerged Arc Welding |
| Product Specification Level | PSL2 |
| Main Application | Oil and Gas Transmission |
The 650 mm diameter provides a practical large-bore configuration for transmission pipelines where strength, dimensional stability and weld integrity are critical.
API 5L X60 PSL2 Material Performance
API 5L X60 is a high-strength line pipe grade with a minimum yield strength of 60 ksi, approximately 415 MPa. Compared with lower-strength grades, X60 provides increased load-carrying capacity while maintaining suitable weldability for pipeline fabrication. PSL2 imposes stricter requirements for chemical composition, mechanical properties, impact performance and nondestructive testing than PSL1. Huayang manufactures API 5L PSL2 LSAW pipe using controlled forming and double-sided submerged arc welding, with hydrostatic and nondestructive testing available according to project specifications.
Our Certificate
Bundling and loading onto vehicles
Pipe Detaild Packages
| Specification | Pcs per Bundle | Bundling Layer Pattern | CBM per Bundle | |
| OD (mm) | Wall Thickness (mm) | |||
| 48.3 | 3.68 | 91 | 6,7,8,9,10,11,10,9,8,7,6 | 1.69 |
| 5.08 | 61 | 5,6,7,8,9,8,7,6,5 | 1.13 | |
| 60.3 | 3.91 | 61 | 5,6,7,8,9,8,7,6,5 | 1.77 |
| 5.54 | 37 | 4,5,6,7,6,5,4 | 1.07 | |
| 73 | 5.16 | 37 | 4,5,6,7,6,5,4 | 1.57 |
| 7.01 | 24 | 4,5,6,5,4 | 0.96 | |
| 88.9 | 5.49 | 24 | 4,5,6,5,4 | 1.42 |
| 7.62 | 19 | 3,4,5,4,3 | 1.19 | |
| 114.3 | 6.02 | 19 | 3,4,5,4,3 | 1.96 |
| 8.56 | 10 | 3,4,3 | 0.94 | |
| 141.3 | 6.55 | 10 | 3,4,3 | 1.44 |
| 9.53 | 7 | 2,3,2 | 1.08 | |
| 168.3 | 7.11 | 10 | 3,4,3 | 2.04 |
| 10.97 | 7 | 2,3,2 | 1.53 | |
| 219.1 | 8.18 | 7 | 2,3,2 | 2.59 |
| 12.7 | 5 | 2,3 | 1.73 | |
| 273 | 9.27 | 5 | 2,3 | 2.68 |
| 15.09 | 3 | 1,2 | 1.79 | |
| 323.8 | 10.31 | 3 | 1,2 | 2.52 |
| 17.48 | 2 | 1,1 | 1.26 | |
Pipe Protection
Pipe-end protection is advisable in case the pipe-ends are bevelled at the pipe manufacturer. In the case of overseas transport, there is an especially increased risk of damaged pipe-ends. This is caused by extra handling procedures in ports and shifting of the pipes onboard vessels.
In addition to end caps or protective rings, external wrapping with protective cloth can be applied along the pipe body. This wrapping helps to safeguard the coating surface from scratches, moisture, and contamination during long-distance transportation or prolonged outdoor storage. Especially for coated or painted pipes, the additional protective cloth layer significantly reduces the risk of mechanical damage, UV exposure, and corrosion initiation, ensuring the pipes arrive at the destination in optimal condition.
