Hebei Huayang Steel Pipe Co., Ltd is one of the leading manufacturers and suppliers of api 5l psl1 gr.b dn300 erw steel pipe water transmission in China. Please feel free to buy cheap api 5l psl1 gr.b dn300 erw steel pipe water transmission from our factory. All customized products are with high quality and low price.
Product Overview

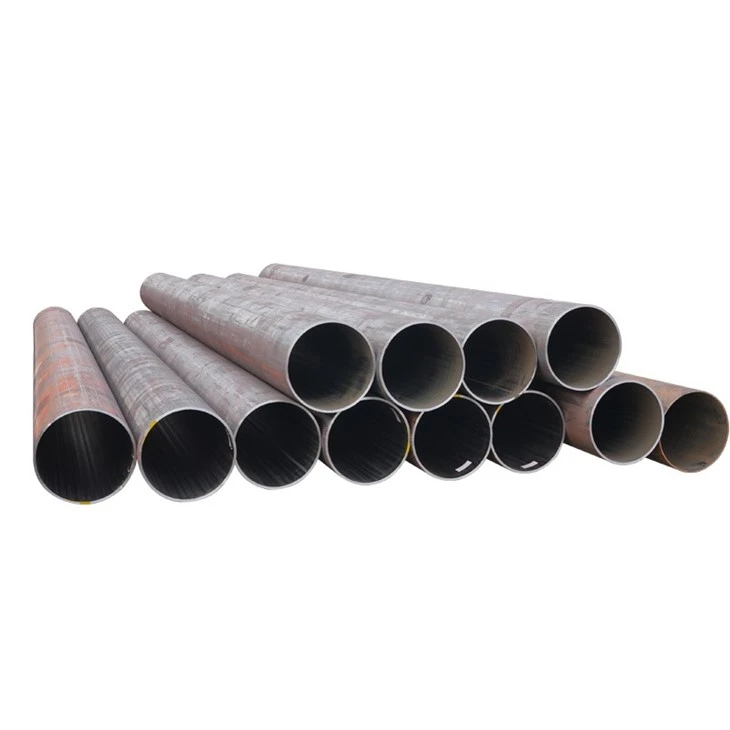

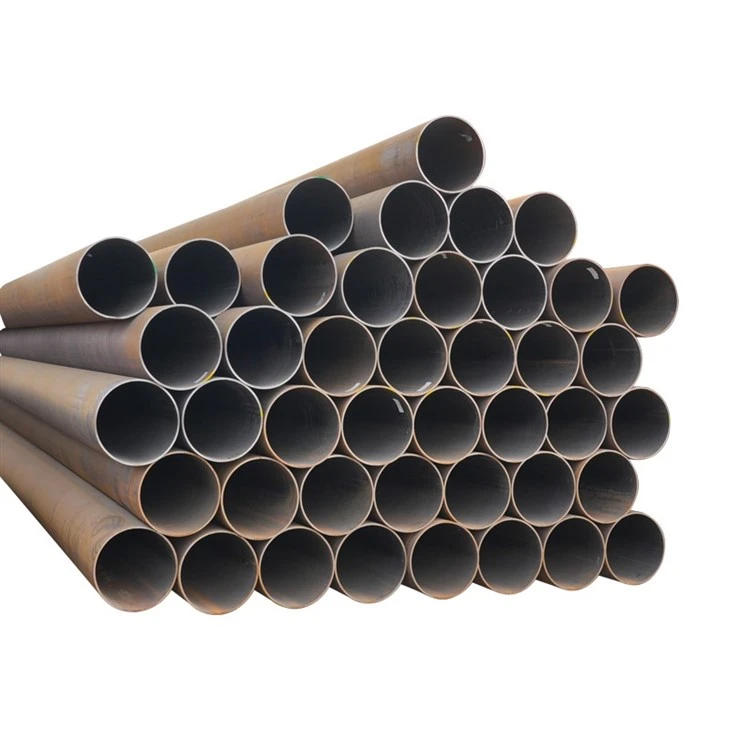

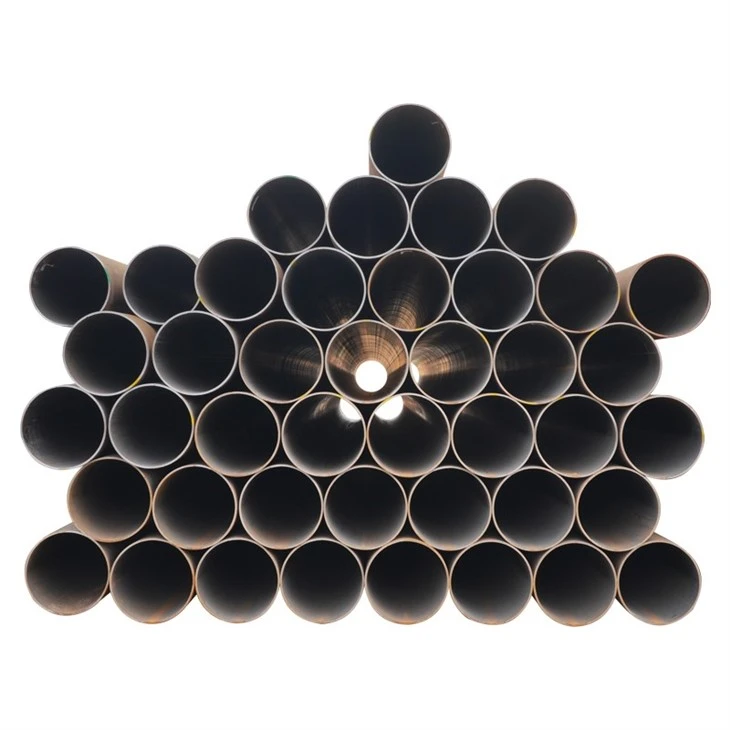

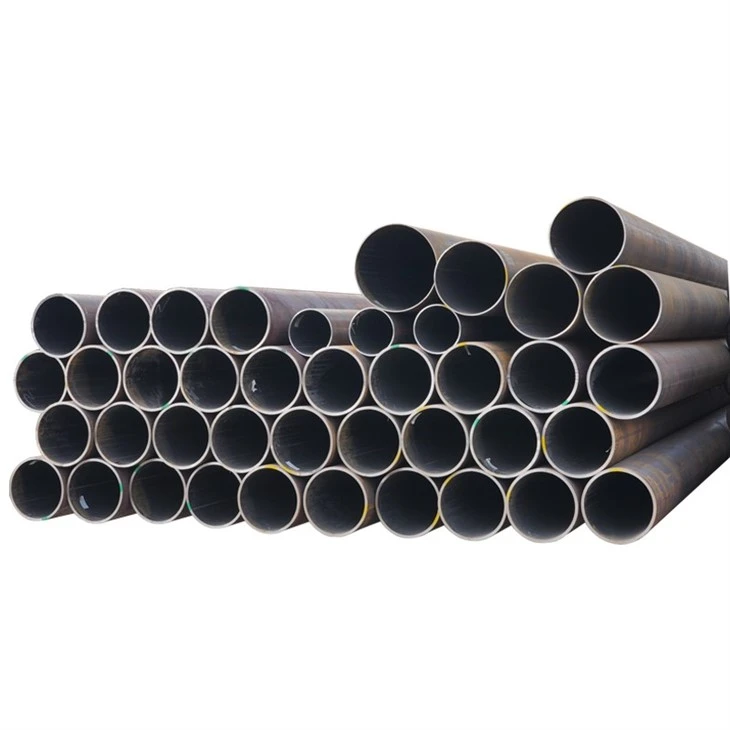

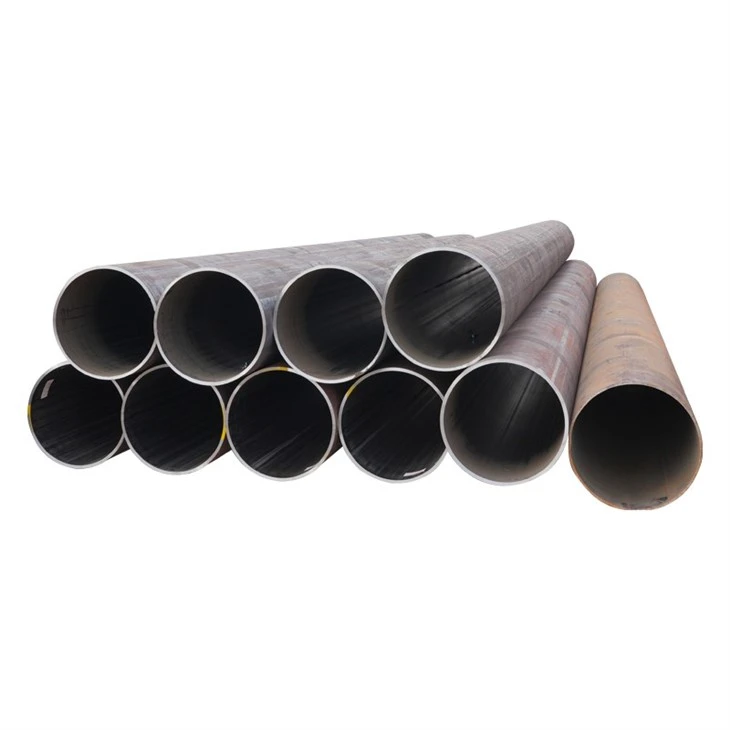

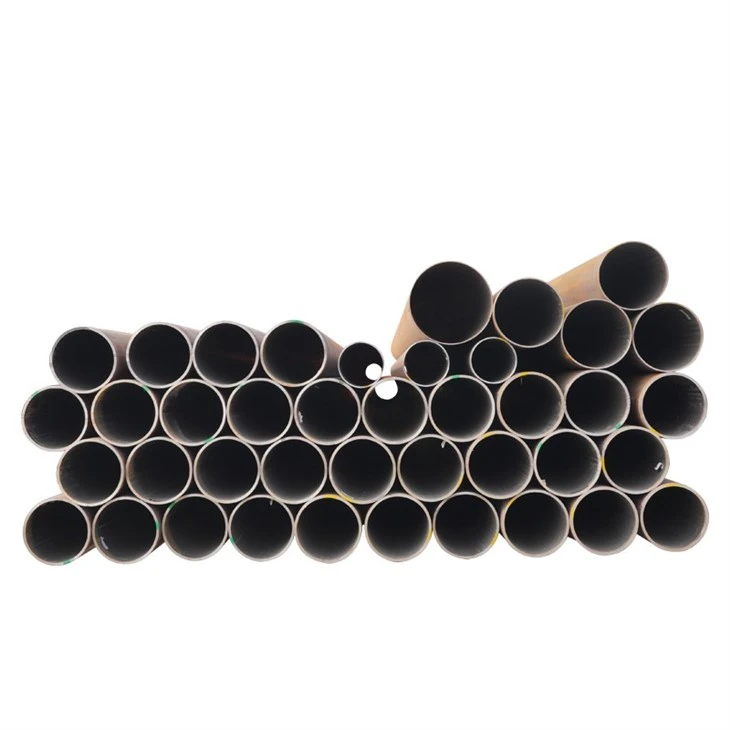

Huayang API 5L PSL1 Grade B DN300 ERW steel pipe delivers dependable pressure performance, excellent weld quality, and long-term durability for water transmission systems.
| Parameter | Specification |
|---|---|
| Outside Diameter | 323.9 mm (DN300) |
| Material Grade | API 5L PSL1 Grade B |
| Manufacturing Process | High Frequency ERW |
| Wall Thickness | 6.0–20.0 mm |
| Main Application | Water Transmission Pipeline |
The pipe supports efficient water conveyance while accommodating multiple anti-corrosion systems for extended service life.
Material Performance and Application
Huayang DN300 API 5L PSL1 Grade B ERW steel pipes are manufactured from high-quality hot-rolled pipeline steel coils using advanced high-frequency electric resistance welding technology, ensuring excellent weld consistency, precise dimensional tolerance, and stable mechanical properties. API 5L PSL1 Grade B provides a minimum yield strength of 245 MPa and a minimum tensile strength of 415 MPa, offering excellent weldability and toughness for pressurized water transportation. The DN300 size is widely applied in municipal water supply systems, long-distance water conveyance projects, pumping stations, and industrial circulating water pipelines. Every pipe is subjected to hydrostatic pressure testing, ultrasonic weld inspection, eddy current testing, tensile testing, flattening tests, and chemical composition verification to ensure full compliance with API 5L requirements. Huayang can also provide internal liquid epoxy lining, FBE, 2PE, and 3PE coating systems, significantly improving corrosion resistance, reducing flow resistance, and extending the operational life of buried and exposed water pipelines.
Our Certificate
Bundling and loading onto vehicles
Pipe Detaild Packages
| Specification | Pcs per Bundle | Bundling Layer Pattern | CBM per Bundle | |
| OD (mm) | Wall Thickness (mm) | |||
| 48.3 | 3.68 | 91 | 6,7,8,9,10,11,10,9,8,7,6 | 1.69 |
| 5.08 | 61 | 5,6,7,8,9,8,7,6,5 | 1.13 | |
| 60.3 | 3.91 | 61 | 5,6,7,8,9,8,7,6,5 | 1.77 |
| 5.54 | 37 | 4,5,6,7,6,5,4 | 1.07 | |
| 73 | 5.16 | 37 | 4,5,6,7,6,5,4 | 1.57 |
| 7.01 | 24 | 4,5,6,5,4 | 0.96 | |
| 88.9 | 5.49 | 24 | 4,5,6,5,4 | 1.42 |
| 7.62 | 19 | 3,4,5,4,3 | 1.19 | |
| 114.3 | 6.02 | 19 | 3,4,5,4,3 | 1.96 |
| 8.56 | 10 | 3,4,3 | 0.94 | |
| 141.3 | 6.55 | 10 | 3,4,3 | 1.44 |
| 9.53 | 7 | 2,3,2 | 1.08 | |
| 168.3 | 7.11 | 10 | 3,4,3 | 2.04 |
| 10.97 | 7 | 2,3,2 | 1.53 | |
| 219.1 | 8.18 | 7 | 2,3,2 | 2.59 |
| 12.7 | 5 | 2,3 | 1.73 | |
| 273 | 9.27 | 5 | 2,3 | 2.68 |
| 15.09 | 3 | 1,2 | 1.79 | |
| 323.8 | 10.31 | 3 | 1,2 | 2.52 |
| 17.48 | 2 | 1,1 | 1.26 | |
Pipe Protection
Pipe-end protection is advisable in case the pipe-ends are bevelled at the pipe manufacturer. In the case of overseas transport, there is an especially increased risk of damaged pipe-ends. This is caused by extra handling procedures in ports and shifting of the pipes onboard vessels.
In addition to end caps or protective rings, external wrapping with protective cloth can be applied along the pipe body. This wrapping helps to safeguard the coating surface from scratches, moisture, and contamination during long-distance transportation or prolonged outdoor storage. Especially for coated or painted pipes, the additional protective cloth layer significantly reduces the risk of mechanical damage, UV exposure, and corrosion initiation, ensuring the pipes arrive at the destination in optimal condition.
