A Complete Technical Overview for High-Quality Pipeline Production
The manufacturing process of LSAW steel pipe, also known as Longitudinal Submerged Arc Welded pipe, is designed to produce large-diameter, thick-wall, and high-strength steel pipes for demanding applications. This production route ensures exceptional weld integrity, dimensional accuracy, and mechanical performance, making LSAW pipe widely used in oil and gas transmission, offshore structural foundations, water transportation, and major infrastructure projects.
As a leading LSAW steel pipe manufacturer in China, Huayang Steel Pipe adopts advanced forming equipment, high-precision welding technology, and strict quality control measures to deliver products that meet global standards such as API 5L, ASTM, EN, GB, and DIN. The following is a detailed overview of the entire LSAW steel pipe production process.
1. Raw Material Inspection and Plate Selection
The LSAW manufacturing process starts with steel plates sourced from trusted mills. Each plate undergoes thorough inspection to ensure compliance with the required mechanical and chemical standards.
Key inspection items include:
• Chemical composition
• Surface defects
• Plate thickness and dimensional accuracy
• Ultrasonic testing to detect internal flaws
Only qualified plates are approved for entry into the forming line.
2. Edge Milling
Before forming, the plate edges must be prepared to ensure precise welding. High-precision milling equipment is used to trim and bevel both edges of the steel plate into the required welding angle. This guarantees proper fit-up, accurate alignment, and strong weld bonding.
3. Pre-Bending and J-C-O Forming
LSAW steel pipes are shaped using the J-C-O forming method. This process includes three major stages:
3.1 Pre-Bending
The edges of the plate are pre-bent to ensure smooth curvature and accurate roundness.
3.2 J-Shaped Forming
The plate is first pressed into a J-shape using hydraulic presses.
3.3 C-Shaped Forming
The next stage further bends the plate into a C-shape.
3.4 Final O-Shaped Forming
Finally, the plate is pressed into a completely closed O-shape, forming the cylindrical steel pipe.
The J-C-O forming method allows excellent dimensional control and even stress distribution, which improves the stability and mechanical performance of the final product.

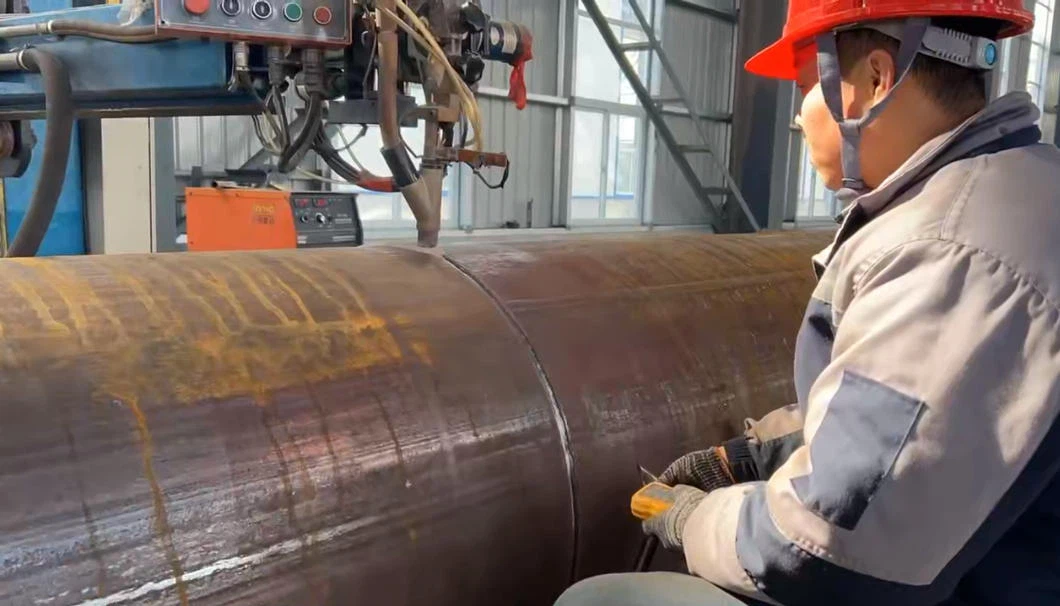

4. Internal and External Submerged Arc Welding
After forming, the pipe undergoes longitudinal submerged arc welding. This is the core step that defines the quality of LSAW pipe.
4.1 Internal Weld
Submerged arc welding is applied inside the pipe first. This technique uses granular flux to cover the welding zone, providing deep penetration and a clean, stable weld bead.
4.2 External Weld
The external weld follows, ensuring full joint fusion and reinforcement. With advanced welding parameters, the process produces:
• High weld toughness
• Low porosity
• Excellent crack resistance
• Uniform metallurgical structure
This welding method is particularly suitable for high-pressure and long-distance pipeline applications.
5. Mechanical Expansion
Once welded, the pipe undergoes mechanical expansion to improve its dimensional stability. The expansion process offers several benefits:
• Enhances roundness
• Reduces residual stress
• Ensures uniform diameter
• Improves matching accuracy during pipeline installation
6. Heat Treatment
Depending on the grade and application requirements, LSAW pipes may undergo heat treatment processes such as normalizing or tempering. These treatments improve the toughness, ductility, and overall mechanical properties of the weld seam and the pipe body.
7. Non-Destructive Testing and Quality Control
Strict quality control is essential throughout the entire production flow. LSAW pipes are tested using multiple inspection methods to ensure compliance with project specifications.
Common Testing Procedures
• Ultrasonic testing of weld and plate
• X-ray inspection of weld integrity
• Hydrostatic pressure testing
• Visual dimensional inspection
Below is a small table summarizing key inspection methods:
| Inspection Method | Purpose |
|---|---|
| Ultrasonic Testing | Detects internal defects in weld and plate |
| X-ray Testing | Ensures full weld penetration and quality |
| Hydrostatic Test | Confirms pressure resistance and sealing |
| Dimensional Check | Ensures diameter, thickness, and roundness accuracy |
These quality measures ensure the final product delivers long-term reliability even in harsh environments.
8. End Beveling and Finishing
After passing all inspections, the pipe ends are beveled to prepare for field welding. Additional processes include:
• Surface cleaning
• Anti-corrosion coating
• Final dimensional check
• Marking and packaging
Each pipe is labeled with size, grade, standard, and heat number for traceability.
9. Applications of LSAW Steel Pipe
Due to its superior mechanical performance and thick-wall capability, LSAW pipe is used in many critical sectors, including:
• Oil and gas transportation pipelines
• Offshore wind power foundation piles
• Water supply and drainage pipelines
• Marine and coastal structures
• Building and bridge construction
• Petrochemical pipeline networks
Its high strength, weld reliability, and excellent pressure resistance make LSAW pipe an industry-preferred solution for heavy-duty engineering applications.
Conclusion
The production process of LSAW steel pipe involves precise raw material control, advanced J-C-O forming technology, high-quality submerged arc welding, mechanical expansion, heat treatment, and strict inspection procedures. This comprehensive workflow ensures that LSAW pipes manufactured by Huayang Steel Pipe deliver exceptional performance in strength, corrosion resistance, and dimensional accuracy.
For projects requiring reliable, thick-wall, large-diameter pipeline solutions, LSAW steel pipe remains a top choice due to its durability, structural integrity, and compliance with international standards.
